Top Seller
STEELMAX SHEET METAL in Dodge
Location:
Dodge Center, MN
Price:
$995 USD
Manufacturer:
Caterpillar
Model:
BM-15 PORTABLE BEVL

Specifications

Condition:
used
Serial number:
11-U0180
Stock number:
016041
Motor:
115 V, 1 PHASE
Speed:
2000-5000 RPM
Noise level:
> 70 dB
Power input:
2000 W
Cutting speed:
APPROX 656'/MIN
Rounding edges:
R3, R4, R5
Vibration level:
CAT III
Insulation grade:
II
Protection grade:
IP 20
Inner radius working:
1.6"
Maximum chamfer width:
0.6"
Sheet metal thickness:
0.12"
Subcategory:
Sheet metal

Description

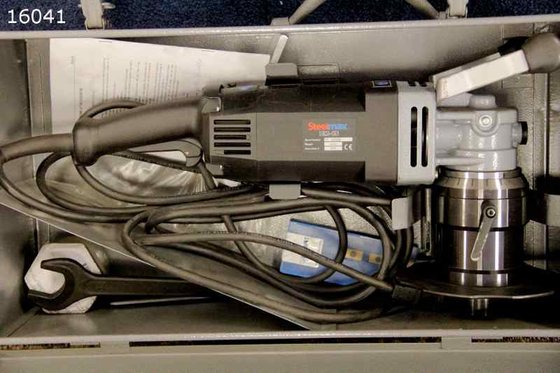

STEELMAX (USED) MODEL BM-15 PORTABLE BEVELLER
POWER INPUT ............... 2000 W
SPEED ..................... 2000-5000 RPM
PROTECTION GRADE .......... IP 20
INSULATION GRADE .......... II
NOISE LEVEL ............... > 70 dB
VIBRATION LEVEL ........... CAT III
CUTTING SPEED ............. APPROX 656'/MIN
MAXIMUM CHAMFER WIDTH ..... 0.6"
STANDARD MILLING ANGLES ... 22.5, 30, 37.5,
45 & 60 DEGREES
SHEET METAL THICKNESS ..... 0.12"
INNER RADIUS WORKING ...... 1.6"
ROUNDING EDGES ............ R3, R4, R5
MOTOR ..................... 115 V, 1 PHASE
