Top Seller
GULLCO SHEET METAL in Dodge
Location:
Dodge Center, MN
Manufacturer:
GULLCO
Model:
KBM-18 BEVELLER

Specifications

Condition:
new
Stock number:
061912
Motor:
2 HP, 3 PH
Bevel speed:
13'/MINUTE
Options available:
PRICE ON REQUEST
Maximum bevel depth:
0.61"
Maximum bevel width:
0.71"
Maximum plate thickness:
1-1/2"
Minimum plate thickness:
1/4"
Subcategory:
Sheet metal

Description

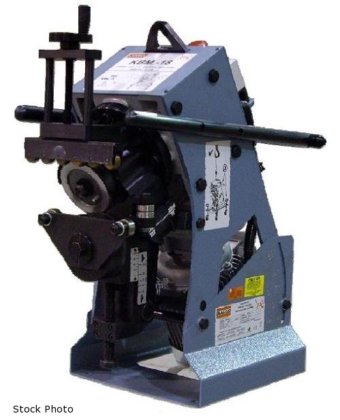

GULLCO (NEW) MODEL KBM-18 PLATE EDGE
BEVELLING MACHINE
STANDARD 30 DEGREE BEVEL ANGLE ON MATERIAL
WITH A TENSILE STRENGTH OF 64,000 LB/IN 2:
MAXIMUM BEVEL WIDTH .......... 0.71"
MAXIMUM BEVEL DEPTH .......... 0.61"
MINIMUM PLATE THICKNESS ........ 1/4"
MAXIMUM PLATE THICKNESS ........ 1-1/2"
BEVEL SPEED .................... 13'/MINUTE
MOTOR .......................... 2 HP, 3 PH
STANDARD EQUIPMENT:
CASTER SPRING LOADED ADJUST. UNDERCARRIAGE
DEEP TOOTH CUTTER
BEVEL ANGLE PINS FOR 22-1/2 DEGREES
30 DEGREES 37-1/2 DEGREES
45 DEGREES 55 DEGREES
TOOL KIT
OPTIONS AVAILABLE .......... PRICE ON REQUEST
HYDRAULIC ADJUSTABLE UNDERCARRIAGE .... POR
ANGLE BEVEL PINS FOR OTHER ANGLES ..... POR
