Top Seller
BOSCHERT SHEET METAL in Dodge
Location:
Dodge Center, MN
Manufacturer:
Boschert
Model:
VARI IV HYD VARIABLE NOT

Specifications

Condition:
new
Stock number:
061771
Size of notch:
5.9" X 5.9"
Angle of notch:
30-120 DEG.
Standard voltage:
220/3/60
Mild steel (50,000 psi):
5/32"
Subcategory:
Notchers
Subcategory 2:
Sheet metal

Description

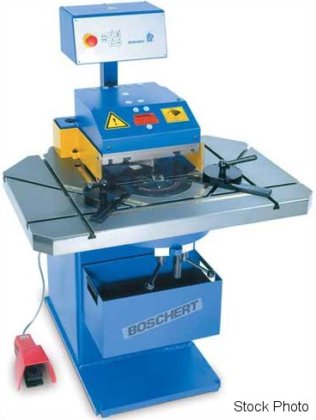

BOSCHERT (NEW) VARI IV HYDRAULIC VARIABLE
ANGLE NOTCHER
CAPACITY
-MILD STEEL (50,000 PSI) ...... 5/32"
-STAINLESS STEEL (75,000 PSI) . 11 GA
SIZE OF NOTCH ................. 5.9" X 5.9"
ANGLE OF NOTCH ................ 30-120 DEG.
HYDRAULIC SYSTEM DRIVE MOTOR .. 6.5 HP
STANDARD VOLTAGE .............. 220/3/60
MILLED BED SURFACE FOR NO FLOAT OR STICK
OPERATION
TWO 30 DEGREE UPPER BLADES WORKING DIRECTLY
WITH 2 CORRESPONDING LOWER BLADES
BLADES AUTOMATICALLY SHIFTED BY PNEUMATIC PWR
HIGH CARBON, HIGH CHROME BLADES
SOLID-STATE CIRCUITRY WITH MOVEABLE ELECTRIC
FOOT PEDAL
ABLE TO NOTCH INTO BEND OF A 90 DEGREE ANGLE
CLEAR VIEW TO THE BLADES' TIPS
EQUIPPED WITH:
2 HEAVY-DUTY ADJUSTABLE STOPS WITH NEW
PATENTED 12" HORIZONTAL HOLD DOWN BARS
T-SLOTS AND ENGRAVED BRASS SCALES ON TABLE
SCRAP BUCKET
