ERCOLINA EP25H2-V2 in Dodge Center,

ERCOLINA EP25H2-V2 in Dodge Center, MN, USA

Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
Ercolina
Model:
EP25H2-V2

Specifications

Condition:
new
Stock number:
061218
Category:
Swagers

Description

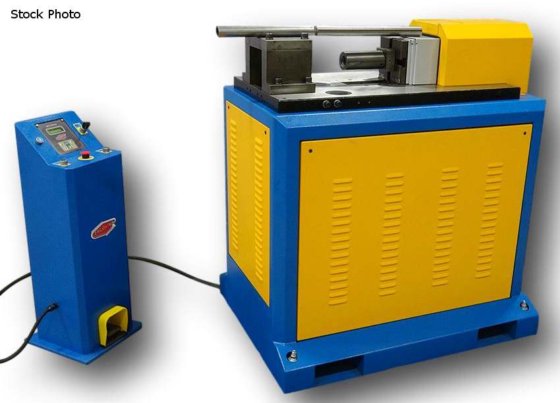

ERCOLINA (NEW) MODEL EP25H2-V2 ERA PRESS
PROGRAMMABLE TUBE AND PIPE SWAGING MACHINE
AND METALWORKING PRESS
FOLDING CAPACITY
STEEL FLAT BAR ......... 5" X 1/2"
TUBE DIAMETER MAX
EXPANSION/REDUCTION .... 3-1/2" X .120
WORKING SPEED ............ 1/2" ~ 1" SEC
PROGRAMMING .............. YES / TOUCH PAD
HYDRAULIC FORCE .......... 25 TONS
HORIZONTAL PRESS ......... YES
MAXIMUM STROKE-CYLINDER .. 6-3/4"
VOLTAGE REQUIREMENT ...... 220V/440V 3 PH
MOTOR .................... 3-1/2 HP, 50-60 HZ
MOTOR SPEED .............. 3650 RPM
FEATURES:
EXPANDS AND REDUCES TUBE AND PIPE ENDS
PERFORMS METALWORKING PRESS OPERATIONS
TOOLING AVAILABLE FOR TUBE FLARING & FLANGING
SQUARE AND RECTANGULAR TOOLING AVAILABLE
PROGRAMMABLE TOUCH PAD CONTROL WITH BACKLIT
LCD DISPLAY
HEAVY DUTY STRUCTURE AND RIGID COMPONENTS
ADJUSTABLE WORKING SPEED AND HYDRAULIC FORCE
QUICK CHANGE MODULAR TOOLING
REMOTE PENDANT WITH LOW VOLTAGE CONTROLS
PROGRAMMABLE CYLINDER POSITIONING
HYDRAULIC MATERIAL CLAMPING SYSTEM
