Top Seller
TIGER STOP BRAKES in Dodge
Location:
Dodge Center, MN
Price:
$4,950 USD
Manufacturer:
TIGER STOP
Model:
TF TIGER FENCE

Specifications

Condition:
new
Stock number:
071325
Software:
PUSH/PULL/POSITION/CUT LIST
Drive speed:
UP TO 10"/SECOND
Display type:
4 X 20 LCD
Controlled by:
PC OR PLC
Model numbers:
TF OR TFX
Working lengths:
51" OR UP TO 70"
Fence dimensions:
4.25" X 4.25"
Power requirements:
120 VAC @ 4A
Motor box dimensions:
10.8" X 5.5" X 4"
Subcategory:
Brakes
Subcategory 2:
Tooling & accessories

Description

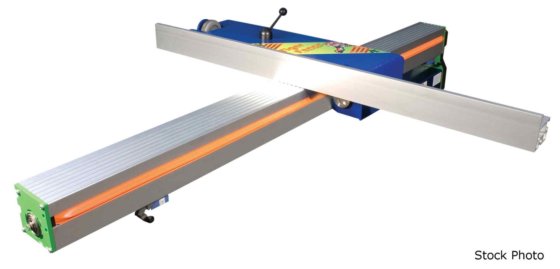

TIGER STOP (NEW) MODEL TF TIGER FENCE
POSITIONER
MODEL NUMBERS ............. TF OR TFX
WORKING LENGTHS ........... 51" OR UP TO 70"
EASILY INSTALLS ON:
TABLE SAWS BRAKES IRONWORKERS
PUNCHES SHEARS
FENCE DIMENSIONS .......... 4.25" X 4.25"
MOTOR BOX DIMENSIONS ...... 10.8" X 5.5" X 4"
POWER REQUIREMENTS ........ 120 VAC @ 4A
50-60 HZ, GROUNDED ISOLATED 3-WIRE CIRCUIT
DRIVE SPEED ............... UP TO 10"/SECOND
REPEATABILITY/ACCURACY .... +/- 0.003"
DISPLAY TYPE .............. 4 X 20 LCD
CONTROLLED BY ............. PC OR PLC
NETWORK OPTIONS ... SERIAL, USB, ETHERNET
SOFTWARE ........ PUSH/PULL/POSITION/CUT LIST
MOTOR - DC FULL LOOP SERVO W/OPTICAL ENCODER
DRIVE - 3/4" MULTI-START HI-LEAD SCREW DRIVE
PRECISION GROUND LINEAR WAY
STANDARD FEATURES:
CONTROLLER WITH STAND AND CABLE
LINEAR POSITIONER
RIP FENCE BODY
PRECISION ALUMINUM RIP FENCE
INSTALLATION HARDWARE
CD MANUAL
QUICK REFERENCE CARDS
1 YEAR WARRANTY
EXAMPLE OF SHEAR WITH TIGER FENCE:
ENTER A PROGRAM
HIT START
LOAD MATERIAL
CYCLE SHEAR
TIGER STOP PUSHES MATERIAL TO NEXT POSITION
CYCLE & PUSH UNTIL MATERIAL IS USED
TIGER STOP WAITS FOR YOU TO LOAD NEXT PIECE
OPTIONS AND ACCESSORIES AVAILABLE
