ALL-FAB WELDERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$8,975 USD
Manufacturer:
ALL-FAB
Model:
1504 WITH 16" CHUCK

Specifications

Condition:
new
Stock number:
061891
Delivery:
4-5 WEEKS
Table tilt:
135 DEGREES
Rotation motor:
1/2 HP
Rotation speed:
0.06-1.4 RPM
Table diameter:
24"
Table rotation:
360 DEGREES
Option included:
16" CHUCK
And 4" eccentricity:
1,500 LBS
Maximum tilt torque:
12,945 LBS/IN
Tilt speed - by hand:
INF VARI
Maximum rotation torque:
6,000 LBS/IN
Subcategory:
Welders
Subcategory 2:
Positioners

Description

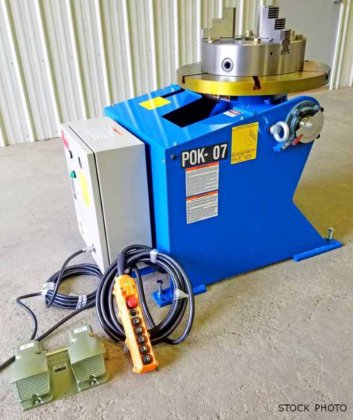

ALL-FAB (NEW) MODEL 1504 WELDING POSITIONER
WITH OPTIONAL MT16 WELDING CHUCK
CAPACITY AT 4" CENTER OF GRAVITY
AND 4" ECCENTRICITY ........ 1,500 LBS
MAXIMUM ROTATION TORQUE ...... 6,000 LBS/IN
MAXIMUM TILT TORQUE .......... 12,945 LBS/IN
TABLE ROTATION ............... 360 DEGREES
TABLE TILT ................... 135 DEGREES
INPUT POWER - SINGLE PHASE ... 115 VOLT 60HZ
ROTATION MOTOR ............... 1/2 HP
ROTATION SPEED ............... 0.06-1.4 RPM
TILT SPEED - BY HAND ......... INF VARI
TABLE DIAMETER ............... 24"
TEE SLOTS - 5/8" TEE NUTS .... 3 @ 120 DEG.
ANCHOR BOLT HOLES IN BASE .... 4 (3/8" BOLTS)
OPTION INCLUDED .............. 16" CHUCK
FEATURES:
SOLID STATE DC INFINITELY VARIABLE SPEED
TABLE ROTATION
HEAVY-DUTY FULLY ENCLOSED WORM GEAR ROTATION
DRIVE. NO BELTS OR CHAINS.
ON/OFF ELECTRIC FOOT CONTROL
400 AMP WELDING GROUND AT 100% DUTY CYCLE
HIGH FREQUENCY PORTECTED FOR TIG WELDING
CLOCKWISE AND COUNTERCLOCKWISE TABLE ROTATION
HEAVY-DUTY TILT WORM GEAR REDUCER WITH SPUR
GEAR FINAL DRIVE 0 TO 135 DEGREES
EXTRA HEAVY FRAME AND CONSTRUCTION
LOCATING HOLE ON DEAD CENTER OF TABLE FOR
LOCATING CHUCKS AND FIXTURES
DELIVERY: 4-5 WEEKS
