ALL-FAB 504 in Dodge Center,
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
ALL-FAB
Model:
504

Specifications

Condition:
new
Stock number:
060634
Subcategory:
Welders
Subcategory 2:
Positioners

Description

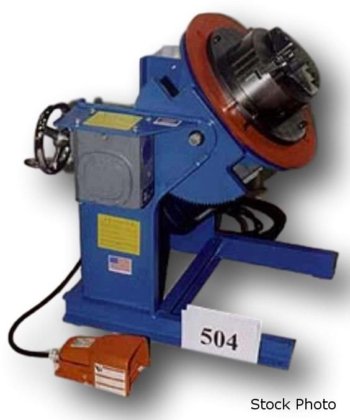

ALL-FAB (NEW) MODEL 504 WELDING POSITIONER
CAPACITY @ 4" CENTER OF GRAVITY
AND 4" ECCENTRICITY ......... 500 LBS
MAXIMUM ROTATION TORQUE ....... 2000"/LBS
MAXIMUM TILT TORQUE ........... 4000"/LBS
TABLE ROTATION ................ 360 DEGREES
TABLE TILT .................... 135 DEGREES
INPUT POWER ................... 115 VOLT 60HZ
SINGLE PHASE
ROTATION MOTOR ................ 1/4 HP DC
ROTATION SPEED-INFINITE VARI .. 0.14-4.3 RPM
TILT SPEED-INFINITELY VARIABLE BY HAND
TABLE DIAMETER ................ 20"
TEE SLOTS @ 120 DEGREES ....... 3
FOR STANDARD ANSI 1/2" TEE NUTS
ANCHOR BOLT HOLES IN BASE ..... 4 FOR 3/8"
FEATURES:
- SOLID STATE DC INFINITELY VARIABLE SPEED
TABLE ROTATION
- HEAVY DUTY FULLY ENCLOSED WORM GEAR
ROTATION DRIVE
- MACHINED TABLE WITH 3 TEE SLOTS
- 400 AMP WELDING GROUND AT 100% DUTY CYCLE
- ON/OFF ELECTRIC FOOT CONTROL
- HIGH FREQUENCY PROTECTED FOR TIG WELDING
- CLOCKWISE & COUNTERCLOCKWISE TABLE ROTATION
- HEAVY DUTY TILT WORM GEAR REDUCER WITH SPUR
