Location:
Painesville, OH
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
2457
Subcategory:
Press

Description

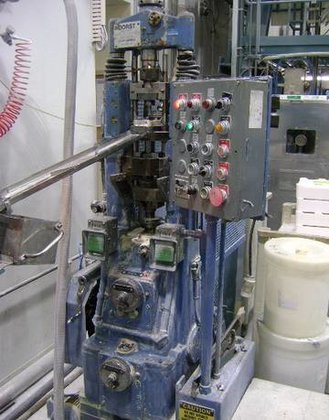

one(1) used Dorst Powder Compacting Press
Model TPA-5.
6.6 ton maximum pressing force.
2.36" maximum depth fill,
withdrawal motion, mechanical, air clutch.
3.54" upper ram stroke.
.984 maximum upper punch hold down stroke.
1.18" ejection stroke. 4.4 ton maximum ejecting force.
19 to 55 strokes per minute, variable speed.
Press Mounted Controls.
Shuttle feed, powder hopper.
(1) die set toolholder included.
3 hp motor 230/460 voltage. electrical panel.
Approx. overall dimensions: 81" high, 39" wide x 40" deep.
Approx. 1600 lbs.
