Top Seller
GMC PT-0404/65A CNC PLASMA CUTTER,
Location:
Harrison, NJ
Price:
$17,850 USD
Manufacturer:
GMC laser cutters
Model:
PT-0404/65A

Specifications

Condition:
new
Stock number:
154037
Age info:
NEW
Table size:
4' x 4'
Water table:
standard
Servo motors:
servo motor drives
Table height:
30"
Cutting system:
220v, 1 phase
Weight, approx:
2,050 lbs.
Max. cutting area:
4' x 4'
Machine dimensions:
83"L x 83"W x 67"H
Cnc control & software:
UCAN NEST V10
Max. cutting thickness:
1/2"
Repeatability accuracy:
004"
Xy servo feeding speed:
39'/min.
Torch height cnc control:
standard
Hypertherm powermax plasma:
65A
Xy servo rapid feeding speed:
49'/min.

Description

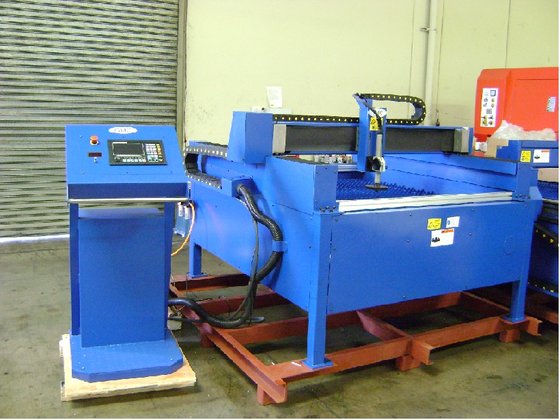

NEW "GMC" HEAVY DUTY CNC PLASMA TABLE
MODEL: PT-0404/65A
STANDARD FEATURES:
ISO 9001 certified
Each model comes with one American-made Hypertherm Powermax plasma source
High quality servo motors drive and high precision cutting
Table comes with standard water tray-water assist cooling (water table)
Torch height CNC control for automatic height detection allowing for perfect arc distance at all times,
and on uneven materials, for a perfect cut every time.
Heavy welded all steel construction for maximum rigidity
Heavy duty industrial grade at max capacity of 1 inch thick and 4' x 4' steel sheet
CNC control with UCAN NEST V10 software with basic shape and jobs library, easy to use programming
Flash card with demo setup/programming video provided
Modern CNC control center with compact waterproof control buttons
Hardened and precision ground guide ways with heavy duty wipers
Industrial cable track and conduit
30" table height for operator convenience
Factory fully assembled and ready to use
Overload protection and disconnect switch
One year warranty for parts
SPECIFICATIONS:
Table size ................................. 4' x 4'
Max. cutting thickness ..................... 1/2"
Max. cutting area .......................... 4' x 4'
Table height ............................... 30"
Hypertherm Powermax plasma ................. 65A
Cutting system ............................. 220v, 1 phase
CNC control & software ..................... UCAN NEST V10
Servo motors ............................... servo motor drives
XY servo feeding speed ..................... 39'/min.
XY servo rapid feeding speed ............... 49'/min.
Water table ................................ standard
Torch height CNC control ................... standard
Repeatability accuracy ..................... .004"
Weight, approx. ............................ 2,050 lbs.
Machine dimensions ......................... 83"L x 83"W x 67"H
STANDARD EQUIPMENT:
Water table
CNC control with UCAN NEST V10 software
One Hypertherm Powermax Plasma power source
OPTIONAL EQUIPMENT (CALL FOR PRICING):
Two day on-site training & set-up
*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
