Location:
Staufenberg, Germany
Manufacturer:
Dreh-Schwenktisch
Model:
300 mm

Specifications

Condition:
used
Stock number:
109147
Subcategory:
Others
Subcategory 2:
Dividing heads

Description

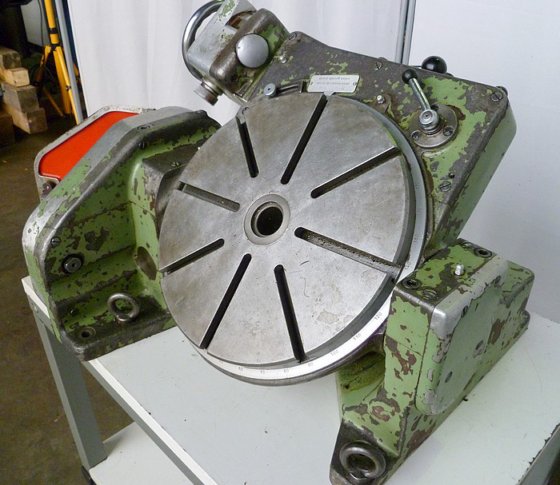

Rotary swivel apparatus manufacturer unknown
Technical specifications:
Faceplates Diameter: 300 mm
8 T-slots radial: 10 mm
External dimensions: 500 x 550 mm
Height: 240 mm
Part movement 1 revolution = 2 °
Setting accuracy: 5 sec.
Driving worm interchangeable, thereby rotatably Faceplate manually
Pivotal movement about vernier read: up to 90 ° vertical
Pivotal movement on final dimensions by sine bar and dial indicator set accurately
Pan and part movement mechanically clamped
Centre bore: 40 mm, 5 mm deep
Bore: 31 mm, 120 mm deep
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
We would be pleased if our offer appeals
and are available for your questions at any time at your disposal.
