Location:
Grenzach-Wyhlen, Germany
Manufacturer:

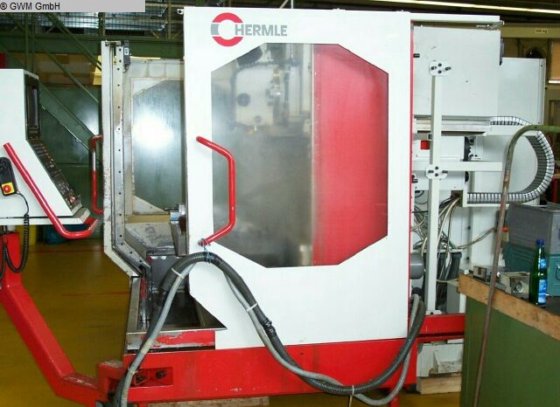

Hermle
Model:
UWF 1202W
Weight:
5,5 t

Specifications

Condition:
used
Year:
1994
Stock number:
1044-1998
X-travel:
850 mm
Y-travel:
630 mm
Z-travel:
500 mm
Table load:
700 kg
Quill travel:
95 mm
Delivery time:
immediately
Freight basis:
ex works, free loaded on truck
Spindle motor:
11,5 kW
Clamping table:
1200x560 mm
Rapid traverse:
10 m/min
Milling spindle:
SK 40
Type of control:
CNC
Country of origin:
Germany
Hob turning speeds:
20-4200 U/min
Total power requirement:
16 kW
Weight of the machine ca.:
5,5 t
Dimensions of the machine ca.:
4x3,5x2 m
Electrics - voltage/frequency:
380/50 V/Hz
Feeds longditudinal/cross/vertical:
0-10.000 mm/min
Spindle head swivable left - right:
+/- 75 °
Distance work spindle /surface of the table:
645 mm
Subcategory:
Drawbenches
Subcategory 2:
Metal processing

Description

horizontal spindle with asideable vertical milling head, 75° tiltable
complete housing with security equipment
electronical handwheel, new window panel
documentation, disc (parameter of the machine)
Switch-on hours of machine: 50035
