- Blue Water Engineering Pty Ltd
- Vaclift FVL2000PT

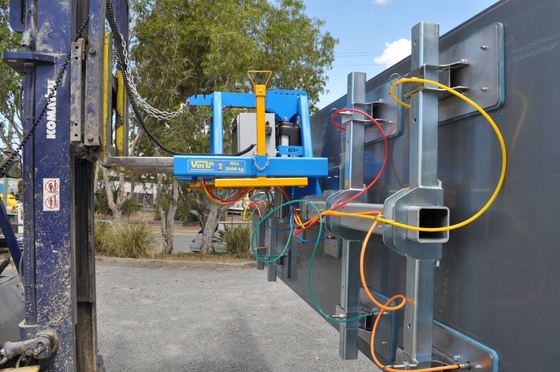

Vaclift FVL2000PT Forklift or Jib/Crane unit
WLL maximum lifting capacity 4400lbs (2000kgs)
Power Tilt through 90 degrees (Optional non tilt models)
Main bar Approx OA length 118” (3000mm) or to suit customer.
4 Cross bars to increase working area
10 specifically designed Hi vac pads, stainless steel construction with vulcanised natural rubber pads. Pads measure approx (18.5” x 9”) 473mm x 228mm.( Optional Vaclift contour pads available in other sizes).
Pads can be relocated along bar into predetermined positions or be rotated 90 degrees on bars. Our .39” (10mm) heavy duty stainless pad latches enable quick changing of pad positions.
Each pad can be independently isolated
Fully self contained vacuum supply and battery power.
No need for power or air from the crane.
110v/12v Fully automatic battery charger supplied, to recharge the main battery when required.
Pendant control with extendable curly chord cable
Audible and visual alarms to meet USA and Australian standards
Large main battery to give long operational life between charges.
Battery indicator light, changes from green to red when main battery needs charging. Please note the lifter can still be used when the battery has reached the recharging level but is not yet at a level that the battery is flat.
Drop down legs to protect pads when unit is not in use.
Powder coated and zinc finish
Approx Tare weight 725lbs (330kg)
Built to USA standards ASME B30.20-2010 and Australian standards AS4991-2004
Full operating, care and maintenance and safety instructions
Forklift tine pockets with large screw locks enable the unit to easily and quickly be fitted or removed from the forklift.
Safety chain from Vaclift to Forklift
Provision for a shackle and lifting strop or hook to also allow optional attachment to an overhead crane.
