- Vaclift FVL500 - R180

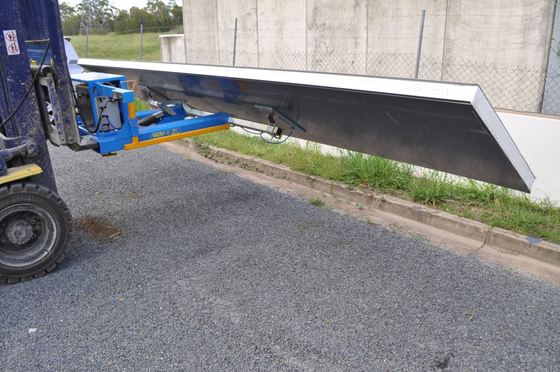

Vaclift Forklift unit - Rotate your panels through 180 Degrees with Ease
Primarily designed for customers requiring to rotate panels through 180 degrees
Pads available to allow lifting of either flat or profile materials, cool room grooved or roofing composite panels with most profile shaped channels
Access and lift sheet materials stored in pallet racks, rotate to 90 or 180 degrees
Fully self contained vacuum supply and battery power.
No need for power or air from the crane
WLL maximum lifting capacity manufactured to suit customer application
Height from bottom of pads to top of fork pocket approx 150mm
180 degree rotation
Main bar approx 2280mm OA length or as required
Cross bars available to suit application.
Hi Vac Vaclift pads supplied to suit customer application
Pads and pad layout options available to suit either grooved, profile shaped or flat panels
Pads can be relocated along bars into predetermined positions or be rotated 90 degrees on bars.
Each pad can be independently isolated
110v/12v Fully automatic battery charger supplied, to recharge the main battery when required.
Pendant control with extendable curly chord cable
Audible and visual alarms to meet USA and Australian standards
Large main battery to give long operational life between charges.
Battery indicator light, changes from green to red when main battery needs charging
Drop down legs to protect pads when unit is not in use.
Powder coated and zinc finish
Built to USA standards ASME B30.20-2010 and Australian standards AS4991-2004
Full operating, care and maintenance and safety instructions
Forklift tine pockets with large screw locks enable the unit to easily and quickly be fitted or removed from the forklift.
Built to solve your lifting problems, specifications may be altered to suit customer requirements.
