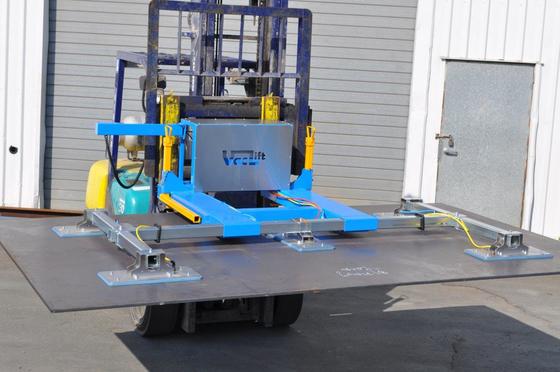

Vaclift FVLPR1000 Forklift pallet rack unit
Primarily designed for customers needing to access and lift sheet materials stored in pallet racks
Fully self contained vacuum supply and battery power.
No need for power or air from the crane
WLL maximum lifting capacity 2200lbs (1000kgs) Also available in other WLL capacities
Height from bottom of pads to top of fork pocket approx 150mm
Main bar approx 2280mm OA length or as required
2 cross bars to increase working area.
5 hi Vac Vaclift pads
Pads can be relocated along bars into predetermined positions or be rotated 90 degrees on bars.
Each pad can be independently isolated
110v/12v Fully automatic battery charger supplied, to recharge the main battery when required.
Pendant control with extendable curly chord cable
Audible and visual alarms to meet USA and Australian standards
Large main battery to give long operational life between charges.
Battery indicator light, changes from green to red when main battery needs charging. Please note the lifter can still be used when the battery has reached the recharging level but is not yet at a level that the battery is flat.
Drop down legs to protect pads when unit is not in use.
Powder coated and zinc finish
Approx Tare weight of base unit 460lbs (210kg)
Built to USA standards ASME B30.20-2010 and Australian standards AS4991-2004
Full operating, care and maintenance and safety instructions
Forklift tine pockets with large screw locks enable the unit to easily and quickly be fitted or removed from the forklift.
Built to solve your lifting problems, specifications may be altered to suit customer requirements.
