Location:
Elk Grove Village, IL
Model:

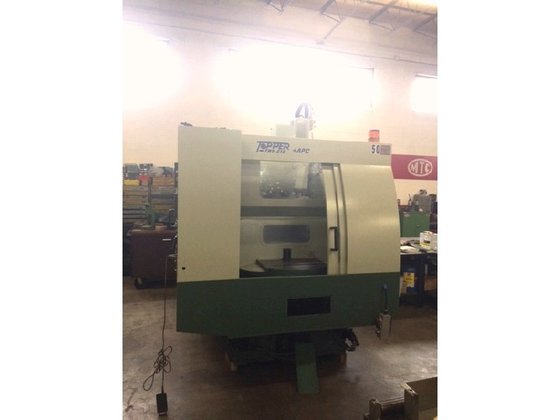

TMV-510+APC
Spindle Taper:
# 30 BT Taper

Specifications

Condition:
used
Year:
2000
Serial number:
9598
Stock number:
3249
Table:
23.6" x 14.02"
Cutting feed:
1 -15000 mm/min
Spindle motor:
7.4 HP
Spindle speed:
15,000 RPM
Spindle taper:
# 30 BT Taper
Tool capacity:
20 Tools
X-axis travel:
20"
Y-axis travel:
14.2"
Z-axis travel:
11.81"
Condition info:
Great
Tool change time:
1 Second
Max load capacity:
440 Lbs.
Approx machine weight:
9,500 Lbs.
Approx machine dimensions:
55" x 91" x 92.5"
Rapid traverser feed (xy&z):
48/48/48 m/min

Description

Equipped With:
Fanuc 18-M Control, Automatic Pallet Changer w/ Rotary Type Pallet Changer, 20 ATC Swing Arm Type, 24" x 16" Table, #30 Taper
