1998 GIARDINA GST-3D 1500/2 +

1998 GIARDINA GST-3D 1500/2 + 1400/1 UV CURING OVEN [FO-010409] in United States

Location:
United States
Price:
$37,900 USD
Manufacturer:
GIARDINA
Model:
GST-3D 1500/2 + 1400/1

Specifications

Condition:
used
Year:
1998
Recnum:
FO-010409
Comments:
GIARDINA "GST" 3-D Curing oven for UV, checked in good operating condition!
Machtype:
UV CURING OVEN
Condition info:
(5-7) Cleaned and checked [6]
Current status:
Active
Elect./voltage:
400 V, 50 Cy, 3 Ph.
Appr. repl. cost:
125000

Description

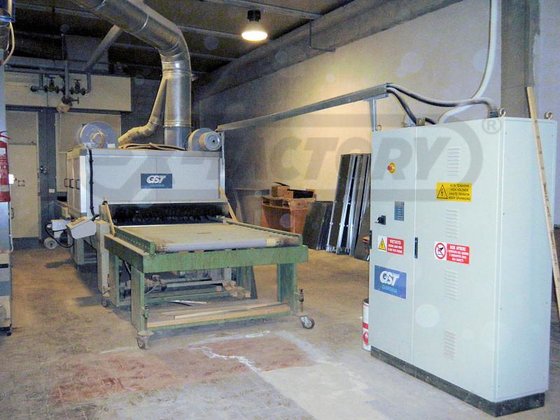

GIARDINA GST-3D 1500/2 +1400/1 UV Curing Oven with (3) Lamps for 3-D Curing.1,300 mm (51") working width 3-D UV Curing Oven is suitable for the curing of any UV lacquering products.Specifications Bottom unit:• One (1) 1,400 mm (55") Straight lamp, for curing the bottom of the panel.• 80 Watts/cm bulb.Specifications Top unit:• Two (2) 1500 mm (59") Inclined lamps, for curing top and sides of the panel.• 80 Watts/cm bulbs.• 4,000 mm (157") motorized bar conveyor with variable speed control.• Free-standing electrical control cabinet.• Total Power: 41 kW.Actual Model: GIARDINA GST-3D 1500/2 +1400/1 UVMachine is priced in USD, Duty paid and landed in the Port of Baltimore, MD - if purchased "fob Europe" price is ...27,000 Euro
