WA WHITNEY PUNCHES in Dodge
Location:
Dodge Center, MN
Price:
$14,500 USD
Manufacturer:
Whitney presses
Model:
90 TON WEB/70TON FLANGE
Capacity:
90 TONS
Stroke:
1-5/8"

Specifications

Condition:
used
Stock number:
016039
Motor:
230/460V 3PH
Serial:
791-019-44766
Stroke:
1-5/8"
Weight:
2000 LBS
Capacity:
90 TONS
Serial 2:
770-015-44788
Serial 3:
701-701-44767
Stroke 2:
1-3/8"
Weight 2:
240 LBS
Weight 3:
414 LBS
Die style:
740 790XX
Capacity 2:
70 TONS
Dimensions:
30" 16" 34"
Horsepower:
10 HP
Die style 2:
740
Punch style:
770 790XX
Throat depth:
18-1/2"
Punch style 2:
770
Throat depth 2:
4-1/4"
Reservoir capacity:
14 GALLONS
Maximum hole diameter:
1-1/2"
Pump output @ "0" psi:
4.6 GPM
Pump output @ 5000 psi:
4.1 GPM
Maximum hole diameter 2:
1-3/8"
Subcategory:
Punches

Description

WHITNEY (USED) 90 TON WEB / 70 TON FLANGE
PRESS COMBO
WEB PRESS MODEL 791AX18
CAPACITY .................... 90 TONS
MAXIMUM HOLE DIAMETER ....... 1-1/2"
MAXIMUM MATERIALS THICKNESS . 1-1/8"
THROAT DEPTH ................ 18-1/2"
STROKE ...................... 1-5/8"
PUNCH STYLE ................. 770 790XX
DIE STYLE ................... 740 790XX
APPROX PUNCHING CYCLE TIME .. 8.00
SERIAL # .................... 791-019-44766
WEIGHT ...................... 2000 LBS

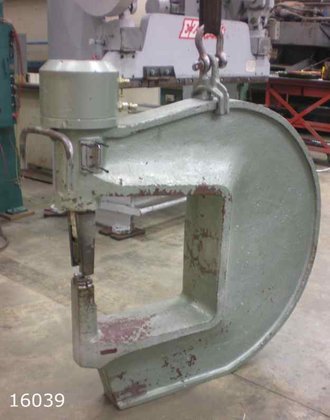

FLANGE PRESS MODEL 770
CAPACITY .................... 70 TONS
MAXIMUM HOLE DIAMETER ....... 1-3/8"
MAXIMUM MATERIALS THICKNESS . 1"
THROAT DEPTH ................ 4-1/4"
STROKE ...................... 1-3/8"
PUNCH STYLE ................. 770
DIE STYLE ................... 740
APPROX PUNCHING CYCLE TIME .. 6.00
SERIAL # .................... 770-015-44788
WEIGHT ...................... 240 LBS
HYDRAULIC POWER UNIT MODEL 700-SV-10A
HORSEPOWER .................. 10 HP
MOTOR ....................... 230/460V 3PH
PUMP OUTPUT @ "0" PSI ....... 4.6 GPM
PUMP OUTPUT @ 5000 PSI ...... 4.1 GPM
RESERVOIR CAPACITY .......... 14 GALLONS
SERIAL # .................... 701-701-44767
WEIGHT ...................... 414 LBS
DIMENSIONS .................. 30" 16" 34"
