Top Seller
1969 2500Lb Cap. Ransome 25-P
Location:
Harrison, NJ
Price:
$8,950 USD
Manufacturer:
Ransome
Model:
25-P
Weight:
2,000 LBS.

Specifications

Condition:
used
Year:
1969
Serial number:
169659
Stock number:
153642
Dimensions:
6'L X 3'W X 4'H
Approx. weight:
2,000 LBS.
Max tilt torque:
30,000" / LBS.
Max. forward tilt:
135 DEGREES
Max. rotation torque:
15,000" / LBS.
No. of table t-slots:
4
Dia. of t-slotted table:
34"
Variable rotation speed range:
38 to 1.55 RPM
Subcategory:
Welding equipment
Subcategory 2:
Welding positioners

Description

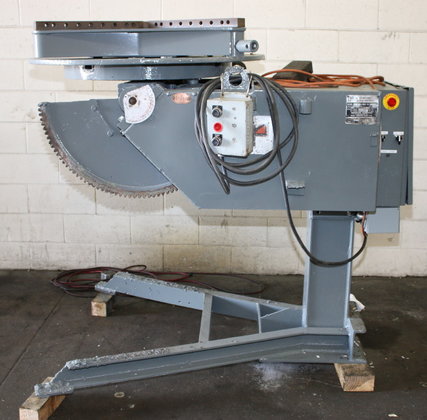

2,500 LB. RANSOME WELDING POSITIONER
MODEL 25P S/N 169659 NEW 1969
CAP. AT 6" CG ABOVE TABLE TOP SURFACE & 6" ECCENTRIC .. 2,500 LBS.
MAX TILT TORQUE ....................................... 30,000" / LBS.
MAX. ROTATION TORQUE .................................. 15,000" / LBS.
MAX. FORWARD TILT ..................................... 135 DEGREES
DIA. OF T-SLOTTED TABLE ............................... 34"
NO. OF TABLE T-SLOTS .................................. 4
VARIABLE ROTATION SPEED RANGE ......................... .38 to 1.55 RPM
MIN. / MAX. VERTICAL ADJ. OF WORK HEIGHT .............. 43" / 61"
ADJ. HEIGHT INCREMENTS, FOUR POSITIONS ................ 6"
APPROX. WEIGHT ........................................ 2,000 LBS.
DIMENSIONS ............................................ 6'L X 3'W X 4'H
EQUIPPED WITH:
- PIPE CHUCK
- INFINITELY VARIABLE ROTATION SPEED w/SOLID STATE ELECTRICAL CONTROLS
- 34" DIAMETER ROUND TABLE w/RADIAL T-SLOTS
- ADJUSTABLE HEIGHT BASE
- HAND HELD PENDANT CONTROL
- REMOTE ELECTRIC FOOT PEDAL FOR DIRECTIONAL CONTROL OF TABLE
- TOGGLE SWITCH FOR FOOT OR PENDANT CONTROL OPTION
- SOLID SPINDLE
- TILT PROTRACTOR
- 1/2 HP DC ROTATION MOTOR
- 1/2 HP 3/60/230-460 VOLT TABLE TILTING MOTOR WITH BRAKE
