1988 70 Ton 120" Bed
Location:
Harrison, NJ
Price:
$24,500 USD
Manufacturer:
Betenbender
Model:
10-70

Specifications

Condition:
used
Year:
1988
Serial number:
19388
Stock number:
153924
Open height:
12"
Press (ipm):
0-44"
Throat depth:
8"
Width of bed:
4"
Closed height:
6"
Height of bed:
28"
Overall width:
45"
Overall height:
104"
Overall length:
135"
Hydraulic pressure:
2750 PSI
Width of upper ram:
2"
Rapid approach (ipm):
44"
Return to open (ipm):
63"
Distance between housing:
102-1/2"
Width of upper end plates:
36"
Width of upper machined ram:
1-3/4"

Description

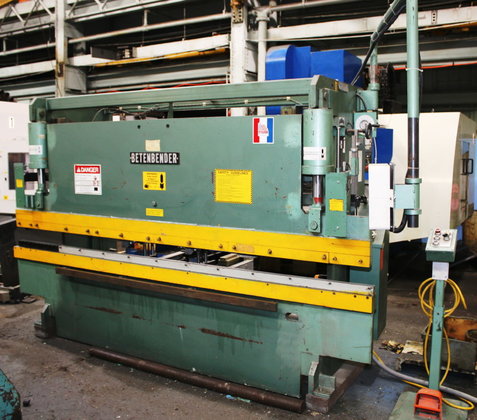

Betenbender 70 Ton x 10' Hydraulic Press Brake
MODEL 10'-70 S/N 19388 NEW 1988
Overall Width .................................... 45"
Width of Bed ..................................... 4"
Width of Upper Machined Ram ...................... 1-3/4"
Overall Height ................................... 104"
Throat Depth ..................................... 8"
Open Height ...................................... 12"
Closed Height .................................... 6"
Height of Bed .................................... 28"
Overall Length ................................... 135"
Distance Between Housing ......................... 102-1/2"
Width of Upper Ram ............................... 2"
Width of Upper End Plates ........................ 36"
Press (IPM) ...................................... 0-44"
Rapid Approach (IPM) ............................. 44"
Return to Open (IPM) ............................. 63"
2-Speed Electric Shift - Standard
HP 10
Weight 13,000 lbs.(est)
STANDARD FEATURES:
CNC 150 Single Axis Automec Autogauge
2-Speed Ram (17T-70T models)
NEMA Electrics
Three Position Foot Pedal
Depth Stop with Digital Readout
Bottom Time Delay
Hour Meter
American Made Motor and Valves
Disconnect Switch
American Made Hoses and Fittings
All Steel Construction
Hydraulic Pressure: 2750 PSI
Cylinders are steel, double acting, piston type with hardened,
ground and chromed rods
Hardened Pins with Spherical bearings for alignment
Front & Back of Bed Machined Smooth for Mounting of Gauges
Multi-switch control panel (with emergency switch, run-job, and
up-down buttons) and 3-position fully guarded switch
Hand wheel control to .001 for depth of bend adjustment
Ram Tilt Micrometer
Pressure Gauge
Control Panel
Ram Machined with 1/2" x 3/4" slot.
