Top Seller

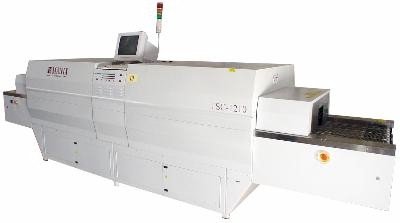

Manix TSC-1210 43089 in Freehold
Location:
Freehold Township, NJ
Price:
$19,500 USD
Manufacturer:
Manix
Model:
TSC-1210

Specifications

Condition:
used
Stock number:
43089

Description

Triple Stage Convection Reflow Soldering System. Windows based graphical user interface. Fully closed loop PID temperature control for +/-1C zone temperature precision. Total heated length: 123 in. Preheat: 52 in. Main Heat: 52 in. Number of controlled zones: 12. Number of vertical zones: 6. Max. Temp.: 350 deg. C. Max. PCB Size: 24 x 22 in. with 2.75 in. clearance. Overall Size: 191 in. L x 48 in. W. 480V, 3 Ph, 50/60 Hz.
