- Freehold Township, NJ, USA
- $7,500 (USD)
- Tenney semiconductor equipment
- TBIC 1753.60150

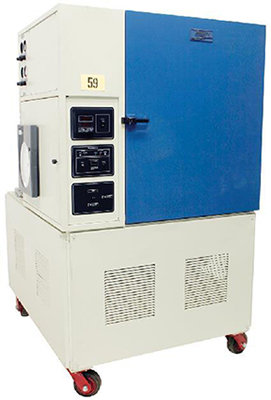

Low Temperature Fast Cooling Temperature Burn-in Chamber with Nitrogen Purge Option. Digital programmable controller with chart recorder. Large dual stage cascaded mechanical compressors. Includes optional liquid nitrogen boost cooling. Include GN2 purge and dry air purge options. Chamber has knife edge type cable feedthroughs. Temp. Range: -50 to +150 deg C. Inside Dimensions: 16 in. L x 26 in. W x 15 in. H. 208V, 3 Ph, 60 Hz, 82A. The original test performed at the factory with a 10 lb. load the chamber went from ambient to +150 deg C in 25 minutes.
