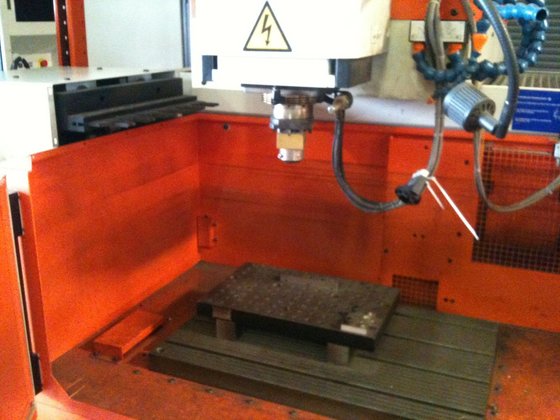

1994 Charmilles Roboform 40 CNC Sinker EDM in Hampshire, IL

Location:
Hampshire, IL
Manufacturer:
Charmilles

Specifications

Condition:
used
Year:
1994
Stock number:
1016
Tank type:
Fixed Tank
Condition info:
As Is, Where Is
Machine weight:
7,920 Lbs
Maximum current:
64 Amps
Tank dimensions:
40.9" x 28.3" x 16.5"
Table resolution:
.000040"
Maximum workpiece size:
39.3" x 27.5" x 14.56"
Chuck to table distance:
5.90" - 23.6"
Measuring/resolver type:
Linear Glass Scales
Maximum workpiece weight:
2,520 Lbs
Machining stroke (x x y x z):
19.6" x 15.7" x 17.7"
Approximate machine dimensions:
116" x 107" x 114"
Maximum electrode weight (static):
220 Lbs
Category:
Edm sinker

Description

Equipped With:
* Charmilles CNC Control w/14" Color Monitor * 6 Position Electrode Changer * Erowa C-Axis * 64 Amp Generator * RS232 Port * Floppy Drive * All Available Manuals
