Top Seller
Tennsmith Universal Floor Hand Brake
Location:
Ronkonkoma, NY
Manufacturer:
Tennsmith
Model:
HBT48-12
Capacity:
12 Ga. Mild Steel
Weight:
72 x 36 x 53 in. (LxWxH)

Specifications

Condition:
new
Stock number:
1670
Capacity:
12 Ga. Mild Steel
Bending length:
4 ft.
Maximum depth of box:
4 in.
Maximum lift of beam:
1-1/2 in.
Minimum reverse bend:
5/8 in.
Top segment tooling widths:
2, 3 , and 4 in.
Dimensions, weights in place:
72 x 36 x 53 in. (LxWxH)
Lower segment tooling widths:
1, 1-1/2, 4, 6, 8, 12, 20 in.
Beam bending tooling segments:
1, 1-1/2, 4, 6, 8, 12, 20 in.
Front to rear beam adjustment:
1/2 in.
Minimum flange in capacity material:
1 in.
Subcategory:
Brakes, box & pan

Description

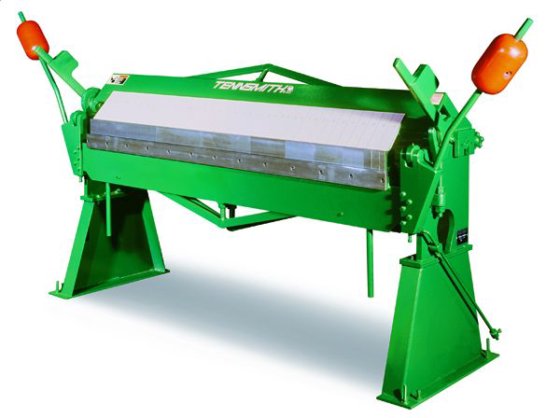

New Tennsmith Universal Floor Hand Brake
Model HBT48-12
Capacity .............................. 12 Ga. Mild Steel
Bending Length ........................ 4 ft.
Maximum Lift of beam .................. 1-1/2 in.
Front to rear beam adjustment ......... 1/2 in.
Maximum depth of Box .................. 4 in.
Minimum reverse bend .................. 5/8 in.
Minimum Flange in capacity material ... 1 in.
Top Segment tooling widths ............ 2, 3 , and 4 in.
Lower Segment tooling widths .......... 1, 1-1/2, 4, 6, 8, 12, 20 in.
Beam Bending tooling segments ......... 1, 1-1/2, 4, 6, 8, 12, 20 in.
Dimensions, weights in place .......... 72 x 36 x 53 in. (LxWxH)
Price: $$Call
FOB: Tennessee
