Tennsmith CNC Folding Machine #1819 in Ronkonkoma, NY, USA

Top Seller
Tennsmith CNC Folding Machine #1819
Location:
Ronkonkoma, NY, USA
Price:
No price
Manufacturer:
TENNSMITH
Model:
SBS12614
Capacity:
14 Ga. Mild Steel

Specifications

Condition:
new
Stock number:
1819
Bending length:
126 in.
Back gauge depth:
40 in.
Bending capacity:
14 Ga. Mild Steel
Hemming capacity:
20 Ga. Mild Steel
Folding beam speed:
90 deg per second
Clamping beam speed:
1.0" per second
Folding beam adjustment:
1 in.
Clamping beam opening height:
7 in.
Back gauge speed (.375" to 40" range):
7 seconds
Category:
Machine Tools equipment in United States
Subcategory:
Folding machines

Description

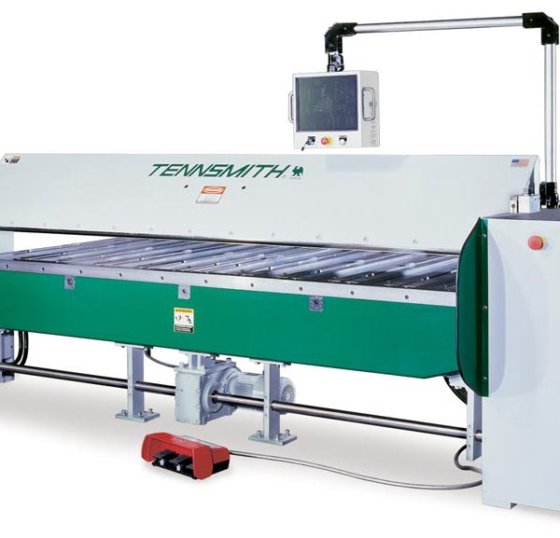

New Tennsmith CNC Folding Machine
Model SBS12614
Bending Capacity ........................ 14 Ga. Mild Steel
16 Ga. Stainless
Hemming Capacity ........................ 20 Ga. Mild Steel
Bending Length .......................... 126 in.
Back Gauge Depth ........................ 40 in.
Clamping Beam Opening Height ............ 7 in.
Folding Beam Adjustment ................. 1 in.
Speeds
Clamping Beam Speed ..................... 1.0" per second
Folding Beam Speed ...................... 90 deg per second
Back Gauge Speed (.375" to 40" Range) ... 7 seconds
SBS System incorporates a twin motor drive system for the folding beam. This
allows the system to be fast and extremely accurate. Low maintenance system.
For maximum hemming capacity, the placement of the motor is in the center
of the machine which maximizes power while reducing torque loss through the
drive shaft.
The back gauge features a twin precision ball screw design.
