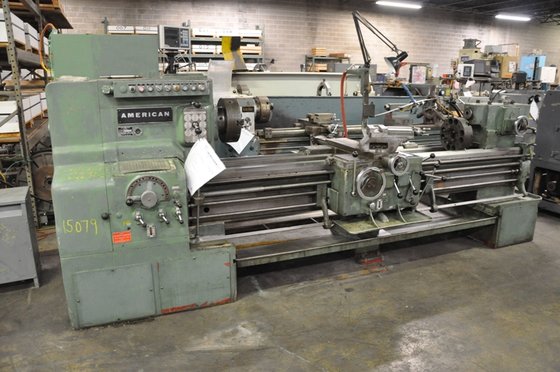

20" X 80" AMERICAN ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $17,500.00
Stock # 15079
Serial # 80081-71 Date New: 1971 Model: Style D
The digital read out installed on this lathe has a Z axis scale that is not long enough to allow full carriage travel over the length of the bed. The actual carriage travel while using the Z axis of the digital read out is 48-1/4". To get full bed length travel the Z axis of the digital read out must be removed.
Swing Over Bed Ways: 25-1/4"
Swing Over Cross Slide: 17-1/2"
Spindle Speeds: 15 to 1000 RPM
Spindle Bore: 2"
Spindle Nose Type: D6 Camlock
Tailstock Quill Diameter: 4-1/16" with #4 Morse Taper
Inch Feeds: .0030" to .1826" Per Revolution
Inch Threads: 1-1/8 to 60 Threads Per Inch
Metric Feeds: .091 to 5.479 MM Per Revolution
Metric Threads: .5 to 30
Fagor Innova Model 20i-T 2-Axis Digital Readout with Operation Manual
Hard Replaceable Bed Ways in Very Good Condition
Inch/Metric Graduated Dials on All Axes Including the Tailstock Quill
Machine Work Light
Manual Thread Chasing Dial
Plastic Swing-Up Style Chuck Guard
Rapid Traverse to Carriage Travel
12" Cushman 4-Jaw Chuck and 12" Skinner 3-Jaw Chuck
Removable Chip Pan
Coolant Pump and Piping
Machines' Electrical Schematics
Bijur One Shot Lubrication to Tailstock
Automatic Lubrication to Carriage and Bed Ways
20 HP Main Motor, Wired for 3 Phase, 60 Hz, 230/460 Volts, Presently Wired 440 Volts
Note: No Tool Post, Chucks, Camlock Wrenches or Manuals.
All Required Gears for Inch/Metric are Built Into the Quick Change Gear Box.
Play in Cross Slide Screw: .005"
Overall Size: 157" L-R x 59" F-B x 70" High x 9,000 Lbs.
