Location:
Lakewood Township, NJ
Model:
MC510VF

Specifications

Condition:
used
Year:
1995

Description

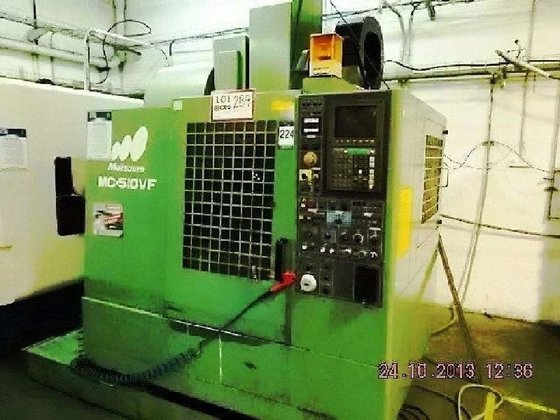

MATSUURA MC510VF 3-AXIS VERTICAL MACHINING CENTER
General Specifications
Table size 30" x 15"
Travels 20" x 16"x 18"
Table capacity 880 Lbs.
Taper BT 40
Spindle speed 8000 RPM
Main motor 15 HP
Transmission Direct drive
Tool changer style (Side Mount) Twin-Arm
Tool change capacity 20 Station
Tool change time 18 Sec. Tool to Tool
Max.Tool length 11.8"
Max. Tool weight 17.6 Lbs.
Machine dimensions 105"x100"x109" Weight 10,150 Lbs.
Equipped With
Yasnac J300 CNC Control
BT 40 Taper
Coolant Unit
Full Enclosure
20 Position ATC
Rigid Tapping
Spindle Chiller
Serial Number
94010919 Year
1995
Location
LIVONIA, MI
