Location:
Lakewood Township, NJ
Model:
HTC-400

Specifications

Description

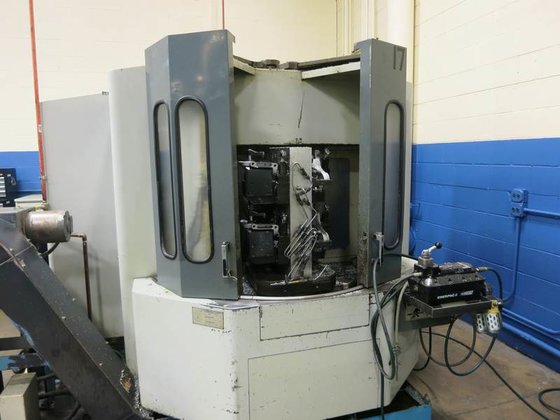

MAZAK MODEL HTC-400 CNC HORIZONTAL MACHINING CENTER
Serial Number
123471 Year
1997
General Specifications
Travel:
X-axis22.05"
Y-axis20.08"
Z-axis20.08"
Distance from table top to spindle center 2.75" - 22.83"
Distance from table center line to spindle nose 5.0"-25.98"
Table pallet size 15.74" x 15.74"
Max. table load 660 lbs
Table indexing 15 Deg
Table indexing time 2.5 sec./90 deg.
Pallet changing cycle time 6.3 sec.(440 lbs.)
Spindle speeds 35-10,000
Spindle taper No. 40
Rapid traverse rate 30,000 mm/min (1180 IPM)
Tool shank configuration CAT 40
Tool magazine capacity 24 Tools
Max. tool length 14.96"
Max. tool weight 17.6 lbs. Overall dimensions: 140" L x 86" D x 89" High Weight ( est. ) 14,770 Lbs.
Motor Specifications
Spindle drive motor(10 min/30 min) 15HP/10HP A/C
Equipped With
Mazatrol M Plus conversational CNC controls
(2) 16" pallets with pallet changer
24 Position ATC
Splash guards
Coolant thru spindle
Chip conveyor
