Location:
Livonia, MI, USA
Model:
NH5000-DCG

Specifications

Description

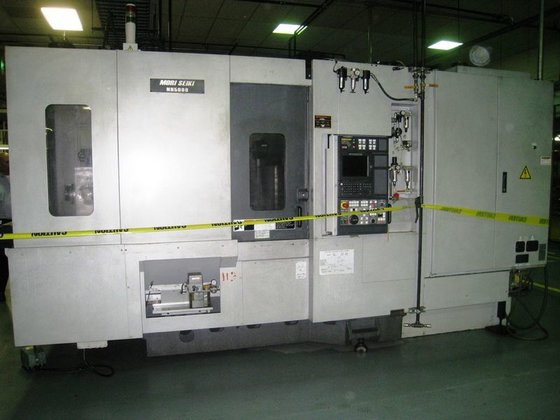

MORI SEIKI MODEL NH5000-DCG CNC PRECISION HIGH SPEED
HORIZONTAL MACHINING CENTER
SERIAL NUMBER NA          NEW 2005
GENERAL SPECIFICATIONS:
Travel:
X-axis travel (longitudinal movement of column) 28.8"
Y-axis travel (vertical movement of spindle head) 23.6"
Z-axis travel (cross movement of table) 26.4"
Distance from pallet surface to spndle center 2.0-25.6"
Distance from table center to spindle gauge plane 3.9-30.3"
Table:
Pallet working surface 19.7x19.7"
Pallet loading capacity 1,100 lbs
Max. workpiece swing diameter 28.7"
Max. workpiece height 35.4"
Pallet surface configuration 4"
Pallet indexing time 90 sec.
Spindle:
Max. sspindle speed 20,000
Feedrate:
Rapid traverse rate 1968.5 Min IPM
Jog feedrate 0-50 min IPM
Atc:
Type of tool shank Cat 40
Type of retention knob Mori Seiki 90
Tool storage capacity 60
Max. tool length 15.7"
Max. tool mass 26.4 Lbs
Max. tool mass moment (from spindle gauge line) 5'8"
Method of selection Tech memory random
Tool changing time (tool to tool) 1...
