Location:
Livonia, MI, USA
Manufacturer:

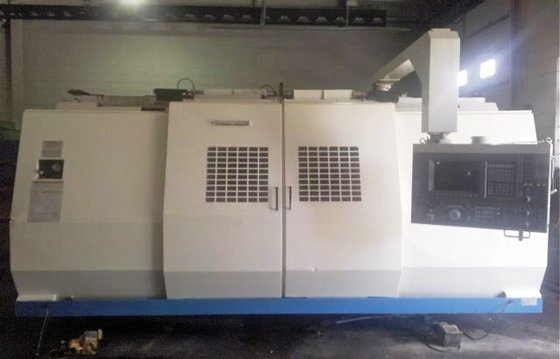

Okuma lathes
Model:
LT-25

Specifications

Condition:
used
Year:
1998
Subcategory:
Cnc lathes

Description

SWING OVER BED                                   25.59"
SWING OVER CARRIAGE                           9.84"
DISTANCE BETWEEN CENTERS                     57"
MAX. TURNING DIAMETER X LENGTH  11.81" x 11.81"
SPINDLE DIAMETER                                   4.72"
SPINDLE NOSE JIS                                     A2-8
TAPER HOLE                                              3.54"
THROUGH SPINDLE HOLE                            3.15"
NO OF SPINDLE SPEED RANGES                       2
SPINDLE SPEEDS                            38-3800 RPM
X AXIS TRAVEL CROSS SLIDE 10.43" UPPER / LOWER TURRET
FEED RATE                          .00001 TO 39.37 IPR
RAPID FEED RATE                                   787 IPM
Z AXIS CARRIAGE TRAVEL (A) 22.4"(B) 44.88"  (C) 22.44"
FEEDRATE                           .00001" TO 39.37 IPR
RAPID FEEDRATE                                     944.89"
C AXIS CONTROLLABLE ANGLE       .001 DEGREES
RAPID FEED RATE                                   200 RPM
TURRET TYPE     ...
