Location:
Lakewood Township, NJ
Manufacturer:
Okuma lathes
Model:
LU-15-2SC-600

Specifications

Condition:
used
Year:
1998
Subcategory:
Cnc lathes

Description

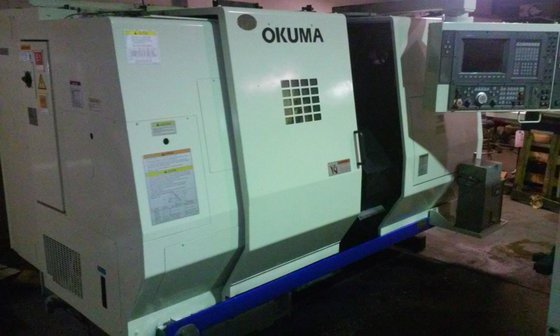

OKUMA LU-15-2SC-600 4 AXIS CNC LATHE TURNING CENTER
NEW 1998
GENERAL SPECIFICATIONS:
Swing over saddle 14.96"
Max. Turning diameter 14.17"
Max. Turning length 23.62"
Travels (X1 & X2) 10.24" & 5.50"
Travels (Z1 & Z2) 25.20" & 24.21"
Spindle bore diameter 2.44"
Spindle nose A2-6
Spindle motor 30 HP
Spindle speeds (2 ranges) 75-4500 RPM
Tool positions upper 12
Tool posiitons lower 8
Rapid traverse X-axis 591 IPM
Rapid traverse Z-axis 787 IPM
Tailstock Taper MT5
Tailstock quill travel 4.72"
Aprox. weight 12,000 Lbs
EQUIPPED WITH:
OSP 7000L CNC Control
(2) Turrets
VDI Tooling
8 Station Lower
12 Station Upper
Chip conveyor
Tailstock
Collet chuck
Turret position compensation
Tool life management, Auto door, NC Turret, In/Metric, Animation, Load monitor, Touch  setter, Tool gauging system, Lap 4, Nose-R 2B, User task 2, Exp. Auto champferig.
