Ultrasonic Engineering CM-634 in Japan

Ultrasonic Engineering CM-634 in Japan
Location:
Japan
Price:
$16,400 (USD)
Manufacturer:
Alpha semiconductor equipment
Model:
CM-634

Specifications

Condition:
used
Weight:
approx. 500kg
Cleaning tub:
2
Power supply:
3φ 200V±10% 60Hz approx. 29A
Cleaning time:
configurable on an attached timer
Needed exhaust:
3m3/min
Ultrasonic generator:
oscillator output/900W, Dimension of active area/160 x 245mm
Condition of air supply:
0.5Mpa or more, approx. 3NL/min
Condition of water supply:
0.4 to 0.6Mpa normal temperature approx. 20L/min or more
Charge of cleaning solution:
60L(Pine Alpha ST-230) for 1st tub, 32L pure water for 2nd tub
Subcategory:
Cleaners
Subcategory 2:
Semi & pcb

Description

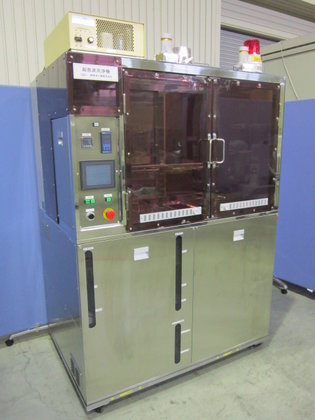

#06293 Ultrasonic Engineering Two-TUB Ultrasonic Cleaner CM-634
Ultrasonic generator : oscillator output/900W, Dimension of active area/160 x 245mm
Cleaning tub : 2
Charge of cleaning solution : 60L(Pine Alpha ST-230) for 1st tub, 32L pure water for 2nd tub
Cleaning time : configurable on an attached timer
Power supply : 3φ 200V±10% 60Hz approx. 29A
Condition of water supply : 0.4 to 0.6Mpa normal temperature approx. 20L/min or more
Amount of cooling water : 0.1Ma, 20C or lower, approx. 5L/min (needed 1.5kw or more for coolabillity)
Condition of air supply : 0.5Mpa or more, approx. 3NL/min
Needed exhaust : 3m3/min
Weight : approx. 500kg
