1980 8" Swing 14" Centers
Location:
Harrison, NJ
Model:
814U VALUEMASTER

Specifications

Condition:
used
Year:
1980
Serial number:
525-8144-2699
Stock number:
154081
- table travel:
22"
- grinds length:
14"
- wheelhead travel:
8-3/8"
- grinds work up to:
8" DIAMETER
- spindle speeds (4):
128 TO 540 RPM
- grinding wheel size:
5", 7" OR 10" DIAMETER
- swivels left & right:
100 DEGREES
- distance between centers:
24"
- travel per rev. of handwheel:
1/4" SLOW
- angular setting to left & right:
90 DEGREES
- wheelhead swivels, left & right:
110 DEGREES

Description

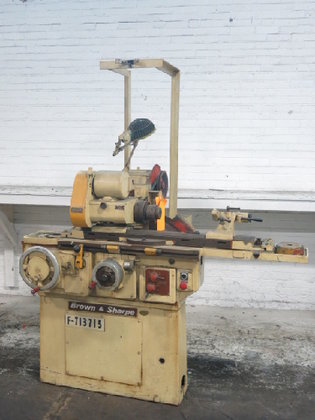

8" x 14" BROWN & SHARPE "PRECISION" "MADE IN USA"
UNIVERSAL CYLINDRICAL GRINDER
MODEL: 814U VALUEMASTER S/N: 525-8144-2699 NEW: 1980
CAPACITY:
- GRINDS WORK UP TO ..................... 8" DIAMETER
- GRINDS LENGTH ................................. 14"
- DISTANCE BETWEEN CENTERS ...................... 24"
WHEELHEAD:
- GRINDING WHEEL SIZE ........ 5", 7" OR 10" DIAMETER
- GRINDING WHEEL SPEEDS (3) ... 2730, 3600 & 5150 RPM
- WHEELHEAD TRAVEL ........................... 8-3/8"
- WHEELHEAD SWIVELS, LEFT & RIGHT ....... 110 DEGREES
SWIVEL TABLE:
- ANGULAR SETTING TO LEFT & RIGHT ........ 90 DEGREES
- FINE SCREW ADJ. FOR SETTING TAPERS UP TO 3" PER FT.
- TABLE TRAVEL .................................. 22"
- TRAVEL PER REV. OF HANDWHEEL ............ 1/4" SLOW
6-1/4" FAST
HEADSTOCK:
- SWIVELS LEFT & RIGHT .................. 100 DEGREES
- SPINDLE SPEEDS (4) ................. 128 TO 540 RPM
EQUIPPED WITH:
DOUBLE ENDED WHEEL SPINDLE, WHEELS CAN BE ON L.H. OR R.H.
CURRENTLY SET-UP WITH 7" GRINDING WHEEL .... MACHINE CAN
ALSO BE USED WITH 5" OR 10" DIAMETER GRINDING WHEELS
DUAL LIVE/DEAD HEADSTOCK SPINDLE
FINE CROSS FEED KNOB (.0001" ON WORK DIA.)
VERTICAL HANDWHEEL GRADUATED TO READ .0005"
ANTI-FRICTION BEARING WHEELHEAD SPINDLE
1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR
1/6 H.P. WORKHEAD MOTOR
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS
** EXCELLENT CONDITION& APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
