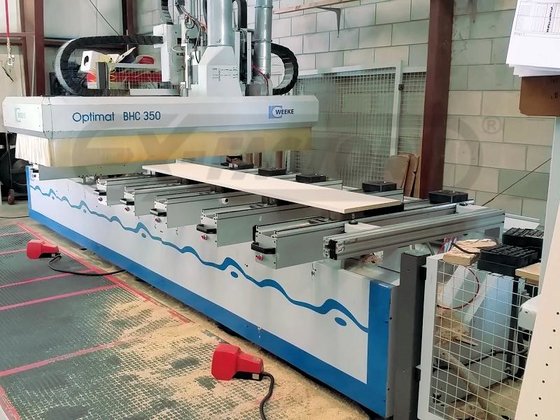

2005 WEEKE BHC 350 S/2
Location:
United States
Model:
BHC 350 S/2

Specifications

Condition:
used
Year:
2005
Recnum:
BP-012221
Comments:
Seller states "STILES has made inspection of machine & have a copy of the report"!
Machtype:
CNC MACHINING CENTER (2-HEAD)
Condition info:
(5-7) Cleaned and checked [5]
Current status:
Active
Elect./voltage:
240 V, 60 Cy, 3 Ph.
Appr. repl. cost:
165000

Description

WEEKE BHC 350 S/2 CNC Machining Center (2-Head):

-- Specifications:Machine features (56) boring spindles with the (2) Heads independently controlled in "Y" & "Z" axes, plus Router spindle and Grooving Saws - known industry wide as the "Hole Rocket".

-- Axes Stroke:"X" axis: 4,310 mm (169.6"), "Y" axis: 1,355 mm (53.3"), "Z" axis stroke: 225 mm (8.8").

-- Working cap.:"X" axis: 3,750 mm (147.6"), "Y" axis: 1,250 mm (49.2"), 80 mm (3.1") max. material thickness.

-- Positioning Speed: "X" axis is 196 FPM (60 MPM), "Y" axis 164 FPM (50 MPM) & "Z" axis 66 FPM (20 MPM). The heads travels on THK linear motion guides on all axes.

-- Worktable: (6) Moveable support rails, raise-and-lower panel feeding rails, (3) matrix style vacuum pods per rail.(6) Pneumatic backstops, (6) Pneumatic frontstops, (2) movable pneumatic side stops, and the dual central zero-stop creates (2) working zones.

-- (2) Boring Heads:A total of (56) boring spindles with the (2) independently controlled heads in "Y" & "Z" axis.

-- Front Boring head:(1) 3.5 HP, 1,500 - 7,000 RPM Motor; equipped with (25) independent vertical spindles in "L" shape configuration, (17) spindles in "X" axis & (8) spindles in "Y" axis.(4) horizontal spindles with (1+1) horizontal spindle in the "X" axis & (1+1) horizontal spindle in "Y" axis; (1) 3.5 HP "X" axis grooving saw, 100 mm dia. blade, 2,000 - 7,000 RPM.

-- Back Boring head:(1) 3.5 HP, 1,500 - 7,000 RPM Motor; equipped with (25) independent vertical spindles in "L" shape configuration, (17) spindles in "X" axis & (8) spindles in "Y" axis.(2) Horizontal spindles with (1+1) horizontal spindle in the "X" axis; (1) 3.5 HP "X" axis grooving saw, 100 mm dia. blade, 2,000 - 7,000 RPM.

-- Machining:(1) 8 HP HSK F63 Liquid cooled electro-spindle powered by KEB frequency inverter, programmable from 1,200 - 18,000 RPM (constant torque from 9,000 - 18,000 RPM), RH or LH rotation.

-- Machine & Operator Control:IPC control with "WEEKE MCC" + Windows "XP" + WoodWOP operating system; 15" high resolution color graphic monitor, standard keyboard & mouse for data entry, 1.44MB floppy disk drive, CD ROM drive.EtherNET interface for possible LAN connection to office PC, RS-232 serial interface for simple PC connection; all mounted in separate free-standing control cabinet.WoodWOP allows for the machine to be programmed off-line with the same intuitive icon driven software that the operator has on the machine controller."BECKHOFF" programmable logic control (PLC) operating system for (3) axes; linear, circular & helical interpolation.

-- Complete with:(1) 100 m³/Hr Vacuum pump, man-height safety enclosure around rear & sides of machine, 2-zone safety mats (will stop machine if operator enters work area).

-- Included Extras:Extra Spindles, New Pods, Replacement Rails, Bar code scanner. Actual Model is WEEKE Optimat BHC 350 S/2 (aka the "HOLE ROCKET").
