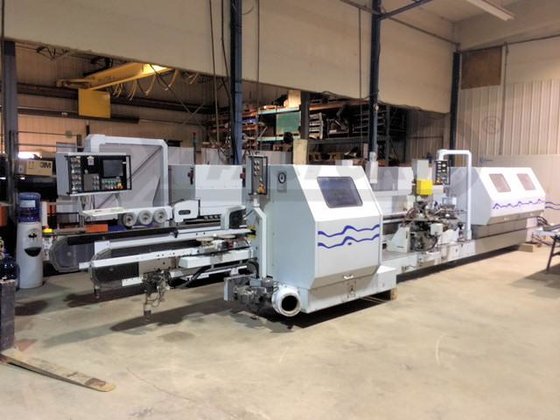

2001 HOMAG KF 62/07/QA/25 COMBINATION
Location:
Canada
Price:
$44,850 USD
Manufacturer:
Homag
Model:
KF 62/07/QA/25

Specifications

Condition:
used
Year:
2001
Recnum:
ED-010348
Comments:
HOMAG Combination machines are hard to find and this one is availble immediately!
Machtype:
COMBINATION TENONER/EDGEBANDER
Condition info:
(3-6) Good Condition [6]
Current status:
Active
Elect./voltage:
600 V, 60 Cy, 3 Ph.
Appr. repl. cost:
425000

Description

HOMAG KF 62/07/QA/25 Double Sided Combination Tenoner/Edgebander;Edge cap.: 0.4 mm - 3 mm. Motorized opening 250 - 2,500 mm (9.8" - 98") w/digital readout, left side fixed & right side moveable.Min. panel width 10" (for double sided use), 4" (single sided), min. panel length 10", panel thickness from 10 mm - 60 mm maximum.Features:

-- Pressure beam with V-belt type holddown; extended chain track infeed 1,000 mm (39").

-- Feed chain prepared for dogs with 500 mm (19") spacing.

-- Variable feed speed 10 - 32 m/Min (33 - 82 FPM).Each side equipped as follows:

-- Tenon Section: Jump scoring unit with 1 HP motor,

-- Hogging/ sawing unit; 6.6 HP trim station; SIKO digitals for setup on stations.Edgebander section:

-- Automatic coil or thin strip feed magazine, w/ 4-coil dispenser; "Quick Melt" glue system "QA 34" w/pre-melt granular hopper & reversible DC drive for glue application.

-- 4-roll pressure section w/pneumatic pressure control.Workstations:

-- End trimming unit with (2) 0.33 HP - 18,000 RPM motors.

-- Top & bottom flush trimming unit, (2) 0.9 HP - 18,000 RPM non-tilt motors.

-- Top & bottom chamfer/fine trimming unit, (2) 0.9 HP - 18,000 RPM motors; 0 - 45° tilting.Complete with:

-- Automatic panel spacing with corresponding dogs; extended outfeed panel for use with powered conveyor; SIKO digital counters; overhead lights, central dust collection, V-groove belt on top pressure beam.

-- Operator control cabinets; "HOMATIC NC 21" controller features: Keypad & LCD display, stores working programs and controls functions of workstations, allows fault diagnostic and comes with pendant for manual line control;

-- Sound Enclosure with interior lighting, used tooling, manuals, etc.
