2004 SELCO EB 70 FRONT

2004 SELCO EB 70 FRONT LOAD, AUTOMATIC PANEL SAW [PH-012226] in Europe

Location:
Europe
Price:
$36,779 USD
Manufacturer:
Selco
Model:
EB 70

Specifications

Condition:
used
Year:
2004
Recnum:
PH-012226
Comments:
Motivated seller says, "MAKE A REASONABLE OFFER"!
Machtype:
FRONT LOAD, AUTOMATIC PANEL SAW
Condition info:
(7-9) Excellent condition [7]
Current status:
Active
Elect./voltage:
400 V, 50/60 Cy, 3 Ph.
Appr. repl. cost:
105000

Description

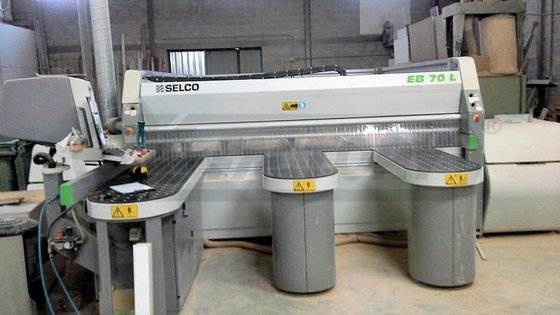

SELCO EB 70 FRONT LOAD, AUTOMATIC PANEL SAW

-- Specifications: 126" (3,200 mm) Overall cutting length, 122" (3,099 mm) max. pusher stroke for crosscutting, 3.1" (80 mm) saw blade projection), 10 HP (7.5 kW) main & 3 HP (2.2 kW) scoring motor.

-- Saw Carriage:Variable saw carriage travel speed from 0 - 164 FPM (0 - 50 MPM).

-- Pusher Fence:Electronically controlled overhead program fence with rack & pinion drive.Forward speed of 80 FPM (24 MPM), 131 FPM (40 MPM) return speed; (7) Gripper Clamps (open up to 70 mm - 2.7"), (3) are closely spaced in crosscut area & (4) are at equal distance in rip cut area;AC Servo motor drives on both saw carriage & pusher fence.

-- Operator & Machine Control:PC Front-End with CNi NC 500 + Assist Line operating system; onboard optimizer.15" Color monitor with: "Real-Time" graphics & LED readout (displays cutting dimensions & patterns), (400) cutting patterns with (50) different dimensions for each pattern, self-diagnostic.Data input by keyboard or direct downloading from office PC is possible.

-- Rear of Machine:Modular roller rear machine table, side aligning device for squaring ripped strips out to 59" (1,500 mm).Rear of machine partially enclosed for safety.

-- Front of Machine: 1,500 mm (59") Long crosscut fence (front-to-back), (1) automatic side/crosscut aligner.(1) Front mounted air flotation table 78 x 25-1/2" (1,981 x 648 mm) & (2) front mounted air flotation tables 57" x 25-1/2" x 57" each (1,448 x 648 mm).

-- Actual Model is SELCO EB 70 L.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
