Top Seller
BAILEIGH R-M40 ANGLE ROLL BENDER,
Location:
McClellan Park, CA
Model:
R-M40

Specifications

Condition:
new
Stock number:
5798
Pinch:
Single
Power:
220V Single Phase
Lower roll dia:
5.118"
Shaft diameter:
1.181"
Roll adjustment:
Manual
Shipping weight:
550 lbs
Shaft center distance lower rolls:
10.88"
Subcategory:
Benders
Subcategory 2:
Angle rolls

Description

Model: R-M40
Roll Adjustment: Manual
Pipe Capacity: Size: 1.5" (sch. 40) / Min. Dia.: 28"
Round Tube Capacity: Size: 2" (.078") / Min. Dia.: 27.55"
Square Tube Capacity: Size: 1.5" (.078") / Min. Dia.: 39"
Solid Round Capacity: Size: 1.375" / Min. Dia.: 24"
Flat Bar Easy Way: Size: 3" (.5") / Min. Dia.: 15.75"
Flat Bar Hard Way: Size: 2.25" (.375") / Min. Dia.: 20"
Angle Iron Capacity: Size: 1.5" (.157") / Min. Dia.: 22"
Shaft Diameter: 1.181"
Shaft Center Distance Lower Rolls: 10.88"
Lower Roll Dia.: 5.118"
Pinch: Single
Power: 220V Single Phase
Shipping Weight: 550 lbs.
DESCRIPTION:
Profile bending is very popular in the world of metal
fabrication as ideas get bigger so do the needs to complete
the projects. A great starting point for anyone looking for

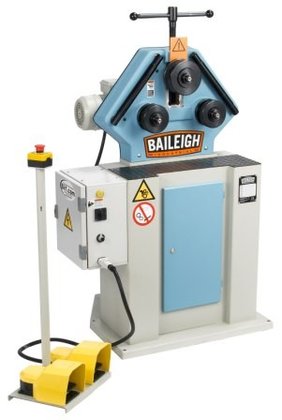

a ring roller is the R-M40 from Baileigh Industrial. This
machine uses a 220 volt single phase motor to do the rolling
and a ratchet style manual top shaft to adjust forming
pressure.
The R-M40 ring roller is perfect for rolling various
sections such as hay hoops, coils of tubing, stair railing
pipe and much more. Like most Baileigh ring rolls the
machine is manufactured using heavy steel plate, industrial
grade transmissions, variable speed inverter driven drives,
and much more.
This ring roller can bend in both the horizontal and
vertical positions. It comes standard with a set of segment
rolls that can be used for bending flat bar, solid rod, and
some square applications. Additional rolls are in stock for
tubing and pipe, as well as other profiles. A solid base has
storage cabinet for tooling and other options.
