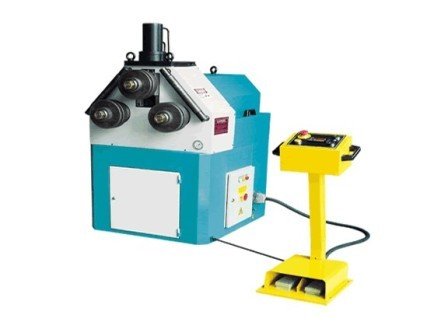

COLE-TUVE ARS-2.5 2 1/2" x
Location:
McClellan Park, CA
Manufacturer:
COLE-TUVE
Model:
ARS-2.5

Specifications

Condition:
new
Stock number:
2500
Motor:
2.5 HP
Electrics:
220/440 Volt, 3 Phase, 60 HZ
Round bar:
1-3/8"
Square bar:
1-3/16"
Round tubing:
2-3/4" X 14 Gauge
Rolling speed:
9 RPM
Square tubing:
2" X 2" X 11 Gauge
Weight (approx):
1200 lbs
Flat bar on edge:
2-3/8" X 3/8"
Flat bar on flat:
4" X 9/16"
Rolls adjustment:
Powered Hydraulic
Pipe, schedule 40:
2"
Angle iron, leg-in:
2" X 2" X 1/4"
Angle iron, leg-out:
2-1/2" X 2-1/2" X 1/4"
Dimensions (approx):
32"L-R X 38"F-B X 59"H
Rect. tubing, hard way:
2-3/16" X 1-3/16" X 11 Gauge
"t" iron, leg out or leg in:
2-3/8"
Working plane (combination):
Horizontal / Vertical
Diameter of upper / lower roll:
5.90" / 6.37"
Channel iron, leg out & leg out:
3"
Subcategory:
Benders
Subcategory 2:
Angle rolls

Description

Model: ARS-2.5 (NEW)
Capacities in Mild Steel:
Angle Iron, Leg-Out: 2-1/2" X 2-1/2" X 1/4"
Angle Iron, Leg-In: 2" X 2" X 1/4"
Flat Bar on Flat: 4" X 9/16"
Flat Bar on Edge: 2-3/8" X 3/8"
"T" Iron, Leg Out or Leg In: 2-3/8"
Square Bar: 1-3/16"
Round Bar: 1-3/8"
Channel Iron, Leg Out & Leg Out: 3"
Pipe, Schedule 40: 2"
Round Tubing: 2-3/4" X 14 Gauge
Square Tubing: 2" X 2" X 11 Gauge
Rect. Tubing, Hard Way: 2-3/16" X 1-3/16" X 11 Gauge
SPECIFICATIONS:
Diameter of Upper / Lower Roll: 5.90" / 6.37"
Rolling Speed: 9 RPM
Working Plane (Combination): Horizontal / Vertical
Motor: 2.5 HP
Electrics: 220/440 Volt, 3 Phase, 60 HZ
Rolls Adjustment: Powered Hydraulic
Dimensions (Approx): 32"L-R X 38"F-B X 59"H
Weight (Approx): 1200 lbs.
STANDARD EQUIPMENT:
* Standard rolls for some of the shapes listed above; others
require special rolls (Details on request)
* 2-Lateral Guide Rolls
* Electric main motor with brake & motor for the hydraulic
system
* Low voltage at the controls
* Full cabinet base with door * Emergency stop
* Movable foot control
* Electronic Digital Readout (LED) for the positions of the
adjustable roll.
