Top Seller

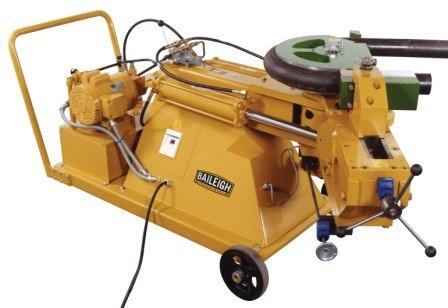

BAILEIGH RDB-500 3", ROTARY DRAW
Location:
McClellan Park, CA
Model:
RDB-500

Specifications

Condition:
new
Stock number:
5873
Power:
220V / 3-phase
Minimum od:
25"
Minimum clr:
5"
Shipping weight:
1800 Lbs
Usa made indicator:
Yes
Shipping dimensions:
70" x 56" x 41"
Mild steel solid rod:
2"
Aluminum round tube wall:
3.5" (.250)
Chromolly round tube wall:
3.5" (.187)
Mild steel round tube wall:
3" (.250)
Mild steel pipe schedule 40:
3"
Mild steel square tube (wall):
3" (.250)
Maximum center line radius clr:
20"
Stainless steel round tube wall:
3.5" (.187)
Stainless steel pipe schedule 40:
2.5"
Subcategory:
Benders
Subcategory 2:
Pipe, tube & bar

Description

Model: RDB-500 Ultimate Tube and Pipe Bender
USA Made Indicator: Yes
Minimum CLR: .5"
Minimum OD: .25"
Mild Steel Solid Rod: 2"
Mild Steel Pipe Schedule 40: 3"
Mild Steel Round Tube Wall: 3" (.250)
Mild Steel Square Tube (Wall): 3" (.250)
Stainless Steel Pipe Schedule 40: 2.5"
Stainless Steel Round Tube Wall: 3.5" (.187)
Chromolly Round Tube Wall: 3.5" (.187)
Aluminum Round Tube Wall: 3.5" (.250)
Maximum Center Line Radius Clr: 20"
Power: 220V / 3-phase
Shipping Weight: 1800 Lbs
Shipping Dimensions: 70" x 56" x 41"
* specifications subject to change without notice.
DESCRIPTION
If you need to bend big pipe, really big pipe, then the
RDB
500 is the perfect rotary draw bender for you. The RDB-500
has a maximum capacity is 3" Schedule 40 pipe, 3" square,&
3.5" round tube (.188 wall mild steel). The maximum center
line radius is 12" (depending on wall thickness, and
material). The RDB-500 pipe bender has one shot bending up
to 206 degrees without stopping or ratcheting and is
variable speed as controlled by the operator via a foot
pedal. The RDB-500 also has a digital auto-stop that will
accurately stop the bending process when the bend gets to
the desired degree.
Powered by 220 volt three phase power, the RDB-500 uses an
industrial grade low pressure hydraulic system to handle all
the bending. Like all Baileigh Industrial benders, the RDB-
500 has a fast cycle time which makes any job more
efficient.
The RDB-500 pipe bender utilizes Baileigh Industrials "drop
on" tooling which will allow you to chose from over 5000
different configurations of outside diameters and center
line radii. If we don't stock it we can also make a custom
die set as well. Consistent with all RMD tube Benders, this
rotary draw bender is made of solid steel construction and
weighs an impressive 1800 lbs and is made in the USA.
