BAILEIGH MB-350 3", MANDREL TUBE&PIPE
Location:
McClellan Park, CA
Model:
MB-350

Specifications

Condition:
new
Stock number:
6485
Power:
220V / 3-phase
Max. clr:
9"
Min. clr:
1.5 x dia
Bending hp:
4 hp
Material feed:
1"
Bend direction:
Clockwise
Hydraulic motor:
5 hp
Max. bend speed:
180 degrees in 16 seconds
Shipping weight:
4000 lbs
Mandrel rod size:
1" dia. x 1"
Index table length:
10 ft
Square tube ss & ms:
2.0" x 2.0" x .120" wall
Index chuck thru hole:
2.4"
Max. hydraulic pressure:
3000 psi
Capacities round od (mild steel):
3.0" x .120"
Capacities round od stainless steel:
3.0" x .065" wall
Subcategory:
Benders
Subcategory 2:
Pipe, tube & bar

Description

Model: MB-350
Min. Clr: 1.5 x dia.
Square Tube SS & MS: 2.0" x 2.0" x .120" wall
Capacities Round OD (Mild Steel): 3.0" x .120"
Capacities Round OD Stainless Steel: 3.0" x .065" wall
Bending Hp: 4 hp
Bend Direction: Clockwise
Mandrel Rod Size: 1" dia. x 1"
Material Feed: 1"
Index Chuck Thru Hole: 2.4"
Index Table Length: 10 ft.
Max. Bend Speed: 180 degrees in 16 seconds
Max. Clr: 9"
Max. Hydraulic Pressure: 3000 psi.
Hydraulic Motor: 5 hp
Power: 220V / 3-phase
Shipping Weight: 4000 lbs.
DESCRIPTION:

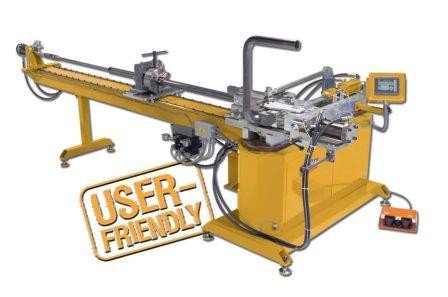

The MB-350 mandrel bender from Baileigh Industrial is the
perfect machine for small to medium fabricators looking to
either increase productivity or bend to small radii like 1.5
times the outside diameter of the material. Bending
stainless steel exhaust is another great application for the
MB-350. This machine has a capacity of 3" OD x .065" wall
thickness on stainless steel.
The MB-350 is made in the USA and is packed with great
features. Operation is controlled by a touch screen
programmer that is capable of having 170 programs with 10
bends per program with the included memory, but is unlimited
with the use of an SD card (standard 2CB SD card, max). A
10' mandrel extraction table with rotary chuck is also
included. This table along with the four manual carriage
stops, allows the operator to "program" where the next bend
is.
This is a right handed mandrel bender with single stack
tooling which makes operation a lot less confusing for first
time operators. Of course, tooling on the MB-350 like all
mandrel benders is application specific and must be verified
to work by Baileigh Industrial. Tooling consists of five
parts; 1 - Rotary Bending Die; 2 - Clamp Die; 3- Pressure
Die; 4 - Mandrel; 5 - Wiper Die.
