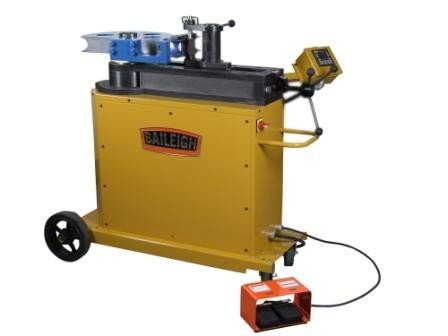

BAILEIGH RDB-325 2 1/2", ROTARY
Location:
McClellan Park, CA
Model:
RDB-325

Specifications

Condition:
new
Stock number:
6719
Width:
32"
Height:
48"
Length:
60"
Weight:
1200 LBS
Minimum od:
25"
Minimum clr:
50"
Power requirements:
220V (1-PHASE)***
Mild steel solid rod:
1.25"
Max. speed to 180 degress:
10 Seconds
Aluminum round tube (wall):
3" (.203)
Aluminum pipe (schedule 80):
2.5"
Chromolly round tube (wall):
3" (.083)
Mild steel round tube (wall):
3" (.095)
Max. center lind radius (clr):
16.50"
Mild steel pipe (schedule 80):
2"
Mild steel square tube (wall):
2" (.125)
Stainless steel round tube (wall):
3" (.095)
Stainless steel pipe (schedule 40):
2"
Subcategory:
Benders
Subcategory 2:
Pipe, tube & bar

Description

Model: RDB-325
Mild Steel Pipe (schedule 80): 2"
Aluminum Pipe (Schedule 80): 2.5"
Stainless Steel Pipe (Schedule 40): 2"
Mild Steel Round Tube (Wall): 3" (.095)
Aluminum Round Tube (Wall): 3" (.203)
Stainless Steel Round Tube (Wall): 3" (.095)
Chromolly Round Tube (Wall): 3" (.083)
Mild Steel Solid Rod: 1.25"
Mild Steel Square Tube (Wall): 2" (.125)
Minimum OD: .25"
Max. Speed to 180 degress: 10 Seconds
Max. Center Lind Radius (CLR): 16.50"
Minimum CLR: .50"
Power Requirements: 220V (1-PHASE)***
Weight: 1200 LBS.
Length: 60"
Width: 32"
Height: 48"
***OTHER VOLTAGES AVAILABLE BY SPECIAL ORDER
TUBE BENDING EQUIPMENT:
The RDB-325 pipe bender has a massive capacity of 2"
Schedule 80 pipe (Mild Steel T.S. 64,000 PSI) and 3" round
tubing. This tube bending equipment requires just 220 Volts
of single phase power that allows it to work in almost any
fabrication setting. This machine comes standard with a
simple to use controller that holds up to 170 programs with
up to ten bends per program. An optional indexing table can
be fitted allowing the fabricator to bend on varying planes
and easily duplicate complex bends.
This pipe bender is constructed of solid steel and weighs in
at an impressive 1200 lbs of pure brawn. A huge capacity and
ample CLR (center line radius) allows this machine to handle
most any potential applications. Like most of our RDB tube
bending equipment, this one comes standard with simple to
use foot pedal controls and a swing away counter die system
for increased production.
The RDB-325 can rotate up to 360 degrees in either
direction, making it a great machine when using our optional
universal bending plate for rod applications. This bending
machine has been designed and built to be a work horse for
any fabrication shop for decades to come.
