Top Seller
BAILEIGH RDB-250 2", ROTARY DRAW
Location:
McClellan Park, CA

Specifications

Condition:
new
Stock number:
6437
Power:
220V Single Phase
Minimum od:
25"
Minimum clr:
5"
Shipping weight:
610 Lbs
Usa made indicator:
Yes
Shipping dimensions:
60" x 44" x 68"
Mild steel solid rod:
1.25"
Aluminum round tube wall:
2.5" (.156)
Chromolly round tube wall:
2" (.125)
Mild steel round tube wall:
2.5" (.125)
Mild steel pipe schedule 40:
2"
Mild steel square tube (wall):
2" (.125)
Maximum center line radius clr:
9"
Stainless steel round tube wall:
2.375" (.125)
Stainless steel pipe schedule 40:
1.5"
Subcategory:
Benders
Subcategory 2:
Pipe, tube & bar

Description

Model: RDB-250
USA Made Indicator: Yes
Minimum CLR: .5"
Minimum OD: .25"
Mild Steel Solid Rod: 1.25"
Mild Steel Pipe Schedule 40: 2"
Mild Steel Round Tube Wall: 2.5" (.125)
Mild Steel Square Tube (Wall): 2" (.125)
Stainless Steel Pipe Schedule 40: 1.5"
Stainless Steel Round Tube Wall: 2.375" (.125)
Chromolly Round Tube Wall: 2" (.125)
Aluminum Round Tube Wall: 2.5" (.156)
Maximum Center Line Radius Clr: 9"
Power: 220V Single Phase
Shipping Weight: 610 Lbs
Shipping Dimensions: 60" x 44" x 68"
* specifications subject to change without notice.
DESCRIPTION

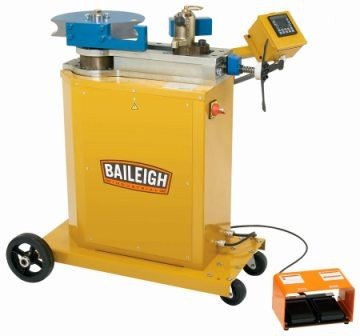

The RDB-250 tube bender from Baileigh Industrial is a great
addition to any fabrication shop. Powered by 220 volt
single phase power, The RDB-250 tube bender has enough power
to bend up to 2-1/2" tubing and 2" Schedule 40 pipe, making
it extremely useful for any chassis or handrail application.
Another nice feature of the RDB-250 is that it can bend to
180 in at a blistering speed of 9 seconds and can be
programmed to bend up to 360 degrees in both left and right
directions, great for solid rod applications when teamed up
with a universal bend plate.
The RDB-250 bender makes quick work of complex serpentine
bends because of its unique quick release counter die mount
and easy to use touch screen controller. The controller on
the RDB-250 tube bender features an internal memory that can
hold 170 programs with 10 bends per program. It also
accepts a memory card (standard 2CB SD card, max) for
unlimited storage. The RDB-250 bender can also be used in
manual mode for those one off prototypes for witch setting a
program is not nessesary. The RDB-250 has a foot pedal
control for even more versatility.
Another nice feature of the RDB-250 tube bender is that it
accepts an index table. An index table is important for
keeping a section of bends during a program on the correct
plane to achieve the most accurate finished product
possible.
The RDB-250 from Baileigh Industrial is the most
revolutionary and economical programmable bender on the
market for its capacity.
