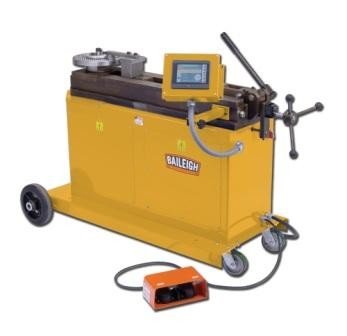

BAILEIGH RDB-350-TS 2-1/2", ROTARY DRAW
Location:
McClellan Park, CA

Specifications

Condition:
new
Stock number:
4964
Power:
220V / 3-phase
Minimum od:
24"
Minimum clr:
5"
Model number:
RDB-350-TS
Shipping weight:
1505 lbs
Usa made indicator:
Yes
Shipping dimensions:
72" x 44" x 50"
Mild steel solid rod:
1.5"
Aluminum round tube wall:
3.5" (.250)
Chromolly round tube wall:
2.5" (.125)
Mild steel round tube wall:
3" (.187)
Mild steel pipe schedule 40:
2.5"
Mild steel square tube (wall):
3" (.125)
Maximum center line radius clr:
24"
Stainless steel round tube wall:
3" (.125)
Stainless steel pipe schedule 40:
2"
Subcategory:
Benders
Subcategory 2:
Pipe, tube & bar

Description

Model Number: RDB-350-TS
USA Made Indicator: Yes
Minimum CLR: .5"
Minimum OD: .24"
Mild Steel Solid Rod: 1.5"
Mild Steel Pipe Schedule 40: 2.5"
Mild Steel Round Tube Wall: 3" (.187)
Mild Steel Square Tube (Wall): 3" (.125)
Stainless Steel Pipe Schedule 40: 2"
Stainless Steel Round Tube Wall: 3" (.125)
Chromolly Round Tube Wall: 2.5" (.125)
Aluminum Round Tube Wall: 3.5" (.250)
Maximum Center Line Radius Clr: 24"
Power: 220V / 3-phase
Shipping Weight: 1505 lbs.
Shipping Dimensions: 72" x 44" x 50"
* specifications subject to change without notice.
DESCRIPTION:
The RDB-350-TS has a user friendly touch-screen controller
that allows the user to store up to 170 programs within the
memory of the controller itself and and unlimited program
storage/back up via micro SD port (standard 2CB SD card,
max, with up to 10 bends per program. The RDB-350-TS can be
programmed for desired angle, spring back for the material,
and speed of the bend. Rotational orientation can also be
kept track of within the programmer. Another unique feature
of this pipe bender is the 320 rotation of the controllers
head. This feature allows the RDB-350-TS to be operated
from any location around the machine.
Like all Baileigh computer controlled tube and pipe benders,
the RDB-350-TS can accept a rotary positioning table. This
table is available in various lengths for repeatable bends
in a single piece of material. When the table is attached
to the tube bender, it helps achieve very accurate bends in
varying planes, as well as consistent measurements between
bends.
