Top Seller
BAILEIGH HB-14418 18 Ga. x
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
HB-14418
Capacity:
144"
Weight:
3,960 lbs

Specifications

Condition:
new
Stock number:
6743
Power:
Manual
Length:
144"
Capacity:
144"
Bend angle:
0 - 135
Thickness (ss):
18 ga. (22 ga.)
Beam adjustment:
1"
Shipping weight:
3,960 lbs
Min reverse bend:
625"
Shipping dimensions:
168" x 34" x 48"
Subcategory:
Apron
Subcategory 2:
Brakes

Description

Model: HB-14418
Min Reverse Bend: .625"
Thickness (SS): 18 ga. (22 ga.)
Capacity: 144"
Beam Adjustment: 1"
Bend Angle: 0 - 135
Power: Manual
Shipping Weight: 3,960 lbs.
Length: 144"
Shipping Dimensions: 168" x 34" x 48"
* specifications subject to change without notice.
DESCRIPTION:

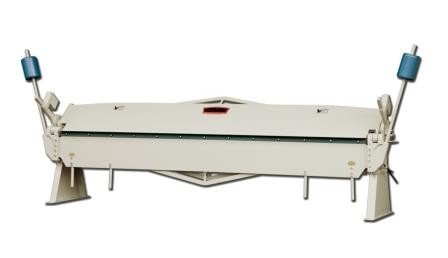

The HB-14418 hand break from Baileigh Industrial is a great
tool for those HVAC shops that need the extra length for
making custom duct work. The HB-14418 has an overall
bending length of 12' and can bend 18 guage mild steel
sheet metal at the full length. Having 12' of bending
length makes quicker work of those long runs that may come
up.
The HB-14418 is made to the same specifications of all
Baileigh Industrial hand brakes. This includes fully
welded steel plate construction for rigidity and top
quality cast components. The fully welded frame on the
HB-14418 hand brake allows for the big capacity without
twisting or misalignment that plagues many of the other
sheet metal brakes on the market. Using cast components
that are machined for tight tolerances helps keep the
cost down as well.
The bending leaf has a single blade that does the
bending. This blade is machined precisely to keep the
bending radius as tight as possible. A heavy duty stand
and two large counter bending weights to help the operator
bend at full capacity are also part of the HB-14418.
