Top Seller

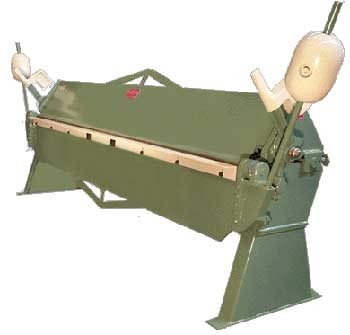

CHICAGO SB-1014 14 Ga. x
Location:
McClellan Park, CA
Manufacturer:
CHICAGO
Model:
SB-1014
Capacity:
18 Gauge**
Weight:
3860 lbs

Specifications

Condition:
new
Stock number:
5286
Dimensions:
165"L X 56"W X 65"H
Approx. weight:
3860 lbs
Bending length:
10'
Stainless steel:
90,000 psi tensile strength
Capacity (stainless):
18 Gauge**
Capacity (mild steel):
14 Gauge**
Subcategory:
Apron
Subcategory 2:
Brakes

Description

Model: SB1014
Bending Length: 10'
Capacity (Mild Steel): 14 Gauge**
Capacity (Stainless): 18 Gauge**
Dimensions: 165"L X 56"W X 65"H
Approx. Weight: 3860 lbs.
STANDARD EQUIPMENT:
* Removable Nose Bar
* Bolted Bottom Bar
* 1/2" Insert Bar
* Angle Bar
* Stop Gauge
NOTE: Mild Steel: 55,000 psi tensile strength
Stainless Steel: 90,000 psi tensile strength
** Bending capacity is achieved when using the angle bar in
the high position and forming a 1" minimum flange on
capacity material.
Use of the 1/2" insert bar with the angle bar in low
position reduces the capacity of the brake four gauges.
Use of the optional 1/4" insert bar with the angle bar in
the low position reduces the capacity of the brake seven
gauges.
