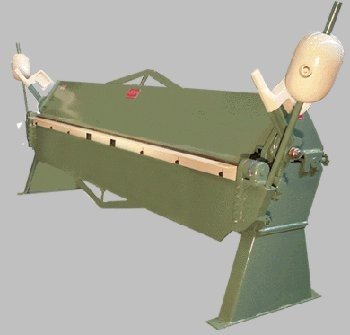

CHICAGO SB1016 16 Ga. x
Location:
McClellan Park, CA
Manufacturer:
CHICAGO
Model:
SB1016
Capacity:
20 Gauge**
Weight:
3400 lbs

Specifications

Condition:
new
Stock number:
4805
Dimensions:
163"L X 53"W X 64"H
Approx. weight:
3400 lbs
Bending length:
10'
Capacity (stainless):
20 Gauge**
Capacity (mild steel):
16 Gauge**
Subcategory:
Apron
Subcategory 2:
Brakes

Description

Model: SB1016
Bending Length: 10'
Capacity (Mild Steel): 16 Gauge**
Capacity (Stainless): 20 Gauge**
Dimensions: 163"L X 53"W X 64"H
Approx. Weight: 3400 lbs.
STANDARD EQUIPMENT:
* Removable Nose Bar
* Bolted Bottom Bar
* 1/2" Insert Bar
* Angle Bar
* Stop Gauge
** Bending capacity is achieved when using the angle bar in
the high position and forming a 1" minimum flange on
capacity material.
Use of the 1/2" insert bar with the angle bar in low
position reduces the capacity of the brake four gauges.
Use of the optional 1/4" insert bar with the angle bar in
the low position reduces the capacity of the brake seven
gauges.
