DIACRO 24 16 Ga. x
Location:
McClellan Park, CA
Manufacturer:
Diacro
Model:
24
Capacity:
16 gauge (1.5mm)
Weight:
100 lbs

Specifications

Condition:
new
Stock number:
7585
Note:
Floor Stand is Optional and extra $
Dimensions:
38"W x 37"D
Minimum reverse bend:
25" (6.4mm)
Maximum forming width:
24" (609.6mm)
Stand shipping weight:
100 lbs
Machine shipping weight:
325 lbs
Maximum depth of box or pan:
3" (76.2mm)
Maximum capacity, mild steel:
16 gauge (1.5mm)
Clearance through top opening:
1" (25.4mm) -
Maximum back gauge adjustment:
24"
Maximum angle bend (one operation):
135 degrees
Subcategory:
Brakes
Subcategory 2:
Box & pan (finger)

Description

Model: 24
Maximum capacity, mild steel: 16 gauge (1.5mm)
Maximum forming width: 24" (609.6mm)
Clearance through top opening: 1" (25.4mm) -
Maximum depth of box or pan: 3" (76.2mm)
Minimum reverse bend: .25" (6.4mm)
Maximum angle bend (one operation): 135 degrees
Maximum back gauge adjustment: 24"
Machine shipping weight: 325 lbs
Stand shipping weight: 100 lbs
Dimensions: 38"W x 37"D
Note: Floor Stand is Optional and extra $
Also Radius fingers are available in 1/16 & 1/8

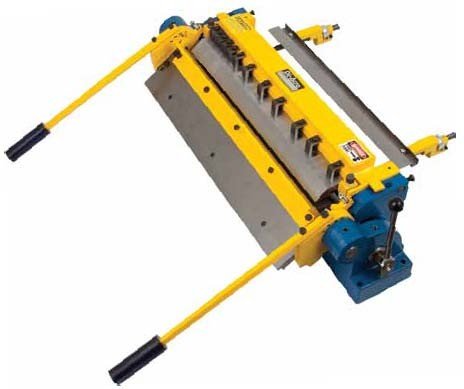

Di-Acro Finger Brakes lend speed and precision to the
forming of boxes, chassis and related shapes in sheet metal.
Di-Acro Finger Brakes are adjustable to enable precision
bending by compensating for material thickness and hardness.
Box Fingers segments enable the operator to form boxes from
0.75" up to the full width capacity of the machine in
increments as small as 0.25".
STANDARD EQUIPMENT:
* Box Fingers (brake die steel).
* Model 24 includes:
2 box fingers @ 0.75"
2 box fingers @ 1.0"
2 box fingers @ 1.25"
2 box fingers @ 3.0"
2 box fingers @ 6.0"
* Two adjustable stops that controls angle bend.
* Micro back gauge
* Zero Radius standard fingers (above)
MADE IN THE USA!
