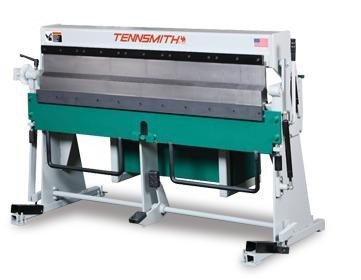

TENNSMITH EBT-6016 16 Ga. x
Location:
McClellan Park, CA
Manufacturer:
TENNSMITH
Model:
EBT-6016
Capacity:
16 Gauge
Weight:
1150 lbs

Specifications

Condition:
new
Stock number:
4405
Max box depth:
4-1/8"/105mm
Bending length:
60-1/4" Overall
Shipping weight:
1150 lbs
Max lift of beam:
4"/102 mm
Overall dimensions:
72"L x 45-1/2"W x 31-1/2"H
Capacity, mild steel:
16 Gauge
Minimum reverse bend:
5/8" /16 mm
Bending beam adjustment:
1" /25 mm
Segmented tooling widths:
20, 12, 8, 6, 4, 1, 5, 1
Subcategory:
Brakes
Subcategory 2:
Box & pan (finger)

Description

Model: EBT-6016
Bending Length: 60-1/4" Overall
Capacity, Mild Steel: 16 Gauge
Max Lift of Beam: 4"/102 mm
Bending Beam Adjustment: 1" /25 mm
Minimum Reverse Bend: 5/8" /16 mm
Segmented Tooling Widths: 20, 12, 8, 6, 4, 1, 5, 1
Max Box Depth: 4-1/8"/105mm
Max. Transverse Bend (Through Tooling Center): 2-1/4" /57mm
Overall Dimensions: 72"L x 45-1/2"W x 31-1/2"H
Shipping Weight: 1150 lbs.
TENNSMITH's new EBT Series is a versatile machine that
allows for the removal and repositioning of both the upper
and lower segments for forming complex parts. In addition,
the EBT incorporates gas spring cylinders in lieu of
traditional counterweights to assist in the bending process
and the raising and lowering of the upper beam. The brake
also features goats' foot style upper beam tooling.
INCLUDES:
* Architectural and ornamental metalforming
* Signage
* Aircraft panel fabrication
EQUIPPED WITH:
* Segmented Lower Base Tooling
* Segmented Folding Beam Tooling
* Come Standard With Manual Side back Gauge, Toolkit, and
Tool Storage Box
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
