Top Seller
GMC HBB-1010 10 Ga. x
Location:
McClellan Park, CA
Manufacturer:
GMC
Model:
HBB-1010
Capacity:
10 GAUGE MILD STEEL
Weight:
8150 LBS

Specifications

Condition:
new
Stock number:
8383
Weight:
8150 LBS
Capacity:
10 GAUGE MILD STEEL
Bend angle:
135 DEGREES
Dimensions:
157"L X 46"W X 69"H
Main motor:
5 HP
Max box depth:
6"
Oil tank capacity:
25 GAL
Large beam opening:
3"
Max bending length:
10'
Subcategory:
Brakes
Subcategory 2:
Box & pan (finger)

Description

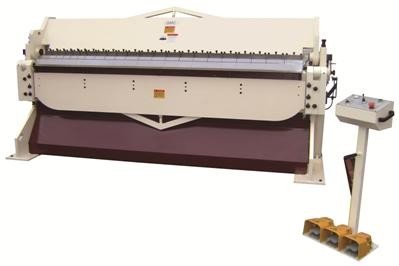

MODEL: HBB-1010
MAX BENDING LENGTH: 10'
CAPACITY: 10 GAUGE MILD STEEL
12 GAUGE STAINLESS STEEL
BEND ANGLE: 135 DEGREES
MAX BOX DEPTH: 6"
LARGE BEAM OPENING: 3"
OIL TANK CAPACITY: 25 GAL.
MAIN MOTOR: 5 HP
DIMENSIONS: 157"L X 46"W X 69"H
WEIGHT: 8150 LBS.
STANDARD FEATURES:
Taiwan Machine
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26" manual back gauge
1" manual beam adjustment ( front and back )
Min. reverse bend is _" (20mm)
Heavy welded all steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Wide guidebody ensures strong, stable, smooth & accurate
movement
Total 2"/6"/12"/ 18"/ 24" pieces fingers assortment
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
STANDARD EQUIPMENT
Assorted fingers
26" manual back gauge
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
OPTIONAL EQUIPMENT:
One-piece straight finger instead of assorted fingers
Safety fence for enclosure of the front side of machine
