Top Seller
TENNSMITH HBT-4812 12 Ga. x
Location:
McClellan Park, CA
Manufacturer:
TENNSMITH
Model:
HBT-4812
Capacity:
12 Gauge
Weight:
1750 lbs

Specifications

Condition:
new
Stock number:
6221
Bending length:
48"
Shipping weight:
1750 lbs
Options available:
RADIUS FINGERS
Capacity, mild steel:
12 Gauge
Maximum depth of box:
4"
Maximum lift of beam:
1-1/2"
Minimum reverse bend:
5/8"
Lower segment tooling widths:
1", 1-1/2", 4", 6", 8", 12"
Top segmented tooling widths:
2, 3, 4 in
Bending beam tooling segments:
1", 1-1/2", 6", 8", 12"
Front to rear beam adjustment:
1/2"
Min. flange in capacity material:
1"
Dimensions, counterweights in place:
72"L X 36"W X 53"H
Subcategory:
Brakes
Subcategory 2:
Box & pan (finger)

Description

Model: HBT4812
Capacity, Mild Steel: 12 Gauge
Capacity, with bending support angle removed, Mild Steel:
16 Gauge
Bending Length: 48"
Maximum Lift of Beam: 1-1/2"
Front to Rear Beam Adjustment: 1/2"
Maximum Depth of Box: 4"
Minimum Reverse Bend: 5/8"
Min. Flange in Capacity Material: 1"
Top Segmented Tooling Widths: 2, 3, 4 in.
Lower segment tooling widths: 1", 1-1/2", 4", 6", 8", 12",
20"
Bending Beam Tooling Segments: 1", 1-1/2", 6", 8", 12",
20"
Maximum Transverse Bend (Through Tooling Centers): 2"
Maximum Transverse Bend (At Either End of Machine): 3"
Dimensions, Counterweights in Place: 72"L X 36"W X 53"H
Shipping Weight: 1750 lbs.

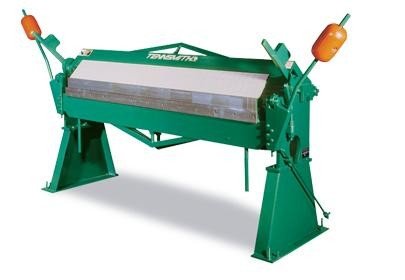

TENNSMITH's new HBT Brake is designed to provide forming
capabilities for complex parts. This machine is truly a
universal hand brake which allows for the removal of both
upper and lower segments of fingers. Complex parts, such as,
HVAC transverse duct forming and down flanged parts, as well
as architectural sheet metal and signage application, can be
formed using this machine.
This brake is built with the same high-quality features and
standards that TENNSMITH brakes are recognized for
throughout the industry.
OPTIONS AVAILABLE: RADIUS FINGERS
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
