Top Seller
TENNSMITH F6-48-12 12 Ga. x
Location:
McClellan Park, CA
Manufacturer:
TENNSMITH
Model:
F6-48-12
Capacity:
12 Gauge
Weight:
1725 lbs

Specifications

Condition:
new
Stock number:
1890
Finger widths:
3", 4", 5"
Bending length:
48
Shipping weight:
1725 lbs
Capacity, mild steel:
12 Gauge
Maximum depth of box:
6"
Maximum lift of beam:
1-1/2"
Minimum reverse bend:
1/4"
Capacity, stainless steel:
16 Gauge
Front to rear beam adjustment:
1/2"
Dimensions, counterweights in place:
72"L x 49"W x 56"H
Minimum flange in capacity material:
1"
Subcategory:
Brakes
Subcategory 2:
Box & pan (finger)

Description

Model: F6-48-12
Capacity, Mild Steel: 12 Gauge
Capacity, Stainless Steel: 16 Gauge
Bending Length: 48
Maximum Depth of Box: 6"
Maximum Lift of Beam: 1-1/2"
Front to Rear Beam Adjustment: 1/2"
Minimum Reverse Bend: 1/4"
Minimum Flange in Capacity Material: 1"
Finger Widths: 3", 4", 5"
Dimensions, Counterweights in Place: 72"L x 49"W x 56"H
Shipping Weight: 1725 lbs.

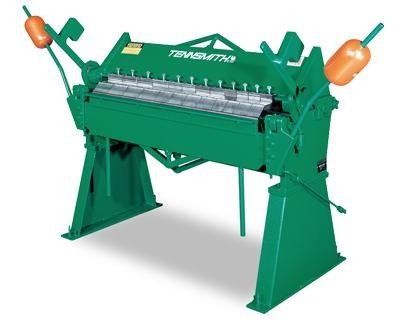

Tennsmith F6 Series box and pan brakes were designed to
provide heavy-duty forming capability, along with the
flexibility of removable 6-inch box depth fingers. Ample
clamping and easy-to-use nose bar adjustments allow for a
quick-setting bend radius. Welded steel plate construction
and heavy truss rods and braces provide strength and
rigidity.
OTHER ADJUSTMENT FEATURES INCLUDE:
* Leveling screws and lock nuts on the pedestals
* Jack screws and tensioner bolts on the apron
* Truss rods on the apron, base and upper beam
* Fully adjustable counter balances to facilitate the
bending process
* Removable apron angle and insert permit 1/4-inch reverse
bends in lighter material
The "F6" at the start of this model# designates that this
brake will do a 6" maximum depth of box. Versus the standard
HBU-48-12 will only do a 4" box.
OPTIONS:
Pair of extension fingers (Pair)
Pair of open-ended fingers (Pair)
Radius fingers (Please Specify Radii)
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
